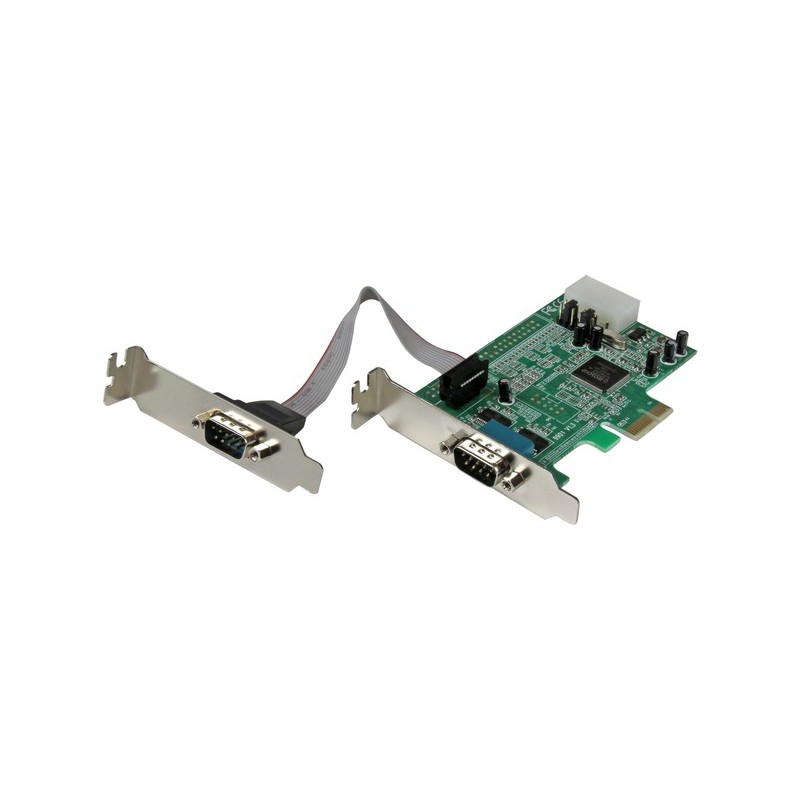

StarTech.com 2 Port Low Profile PCI Express Serial Card - 16550 - Add 2 high-speed RS-232 serial ports to your low profile/small
Reference: STCPEX2S553LP
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Manufacturer:StarTech.com
Manufacturer Part Number:PEX2S553LP
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
Marketing Information:
The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX2S552LP card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity:1
Product Type:Serial Adapter
Host Interface:PCI Express x1
Data Transfer Rate:460kB/s
UART Type:16550
Platform Supported:
- PC
- Mac
- Linux
Number of Serial Ports (External):2
Form Factor:Plug-in Card
Card Height:Dual-profile
Height:0.8"
Width:3.1"
Length:4.1"
Weight (Approximate):2.20 oz
Package Contents:
- 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
- DB9 Ribbon Cable
- Full Profile Bracket
- Low profile Bracket
- Driver CD
- Instruction Manual
Additional Information:
- Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
- Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility.
- Easy to install and use with full step-by-step instructions saves time and hassle.
Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Limited Warranty:2 Year
