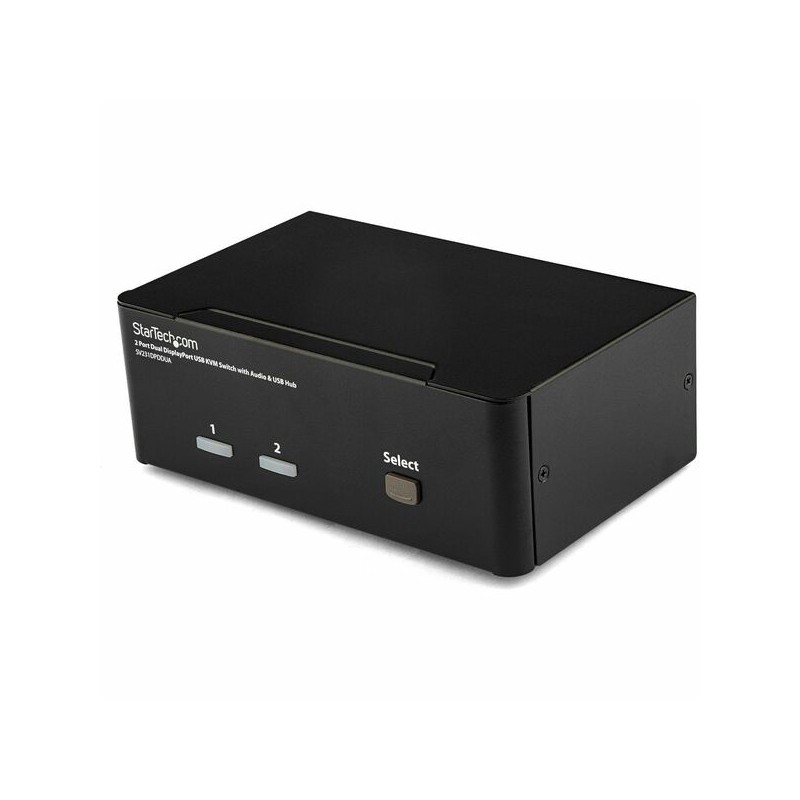

StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio - Control 2 high-resolution dual DisplayPort computers with a sin

Reference: STCSV231DPDDUA

Condition: New product

Manufacturer:

99999 Items

$499.99

More info

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter. Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input. Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SV231DPDDUA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:SV231DPDDUA
Product Name:2-port Dual Display DisplayPort KVM
Marketing Information:

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.


Packaged Quantity:1
Product Type:KVM Switchbox

Technical Information
Number of Computers Supported:2
Number of Local Users Supported:1
Daisy Chain Supported:No
Video
Graphic Mode:WQUXGA
Maximum Video Resolution:3840 x 2400
Interfaces/Ports
USB:Yes
DisplayPort:Yes
Number of USB Ports:6
Number of DisplayPorts:6
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC

Input Voltage Range:110V AC to 240V AC
Power Consumption:18 W
Physical Characteristics
Product Color:Black
Product Material:Steel
Form Factor:Desktop
Height:2.3"
Width:6.3"
Depth:3.9"
Weight (Approximate):1.62 lb
Miscellaneous
Package Contents:
  • 2-port Dual Display DisplayPort KVM
  • 1 x Universal Power Adapter (NA/EU/UK/AU)
  • 1 x Instruction Manual

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:3 Year
