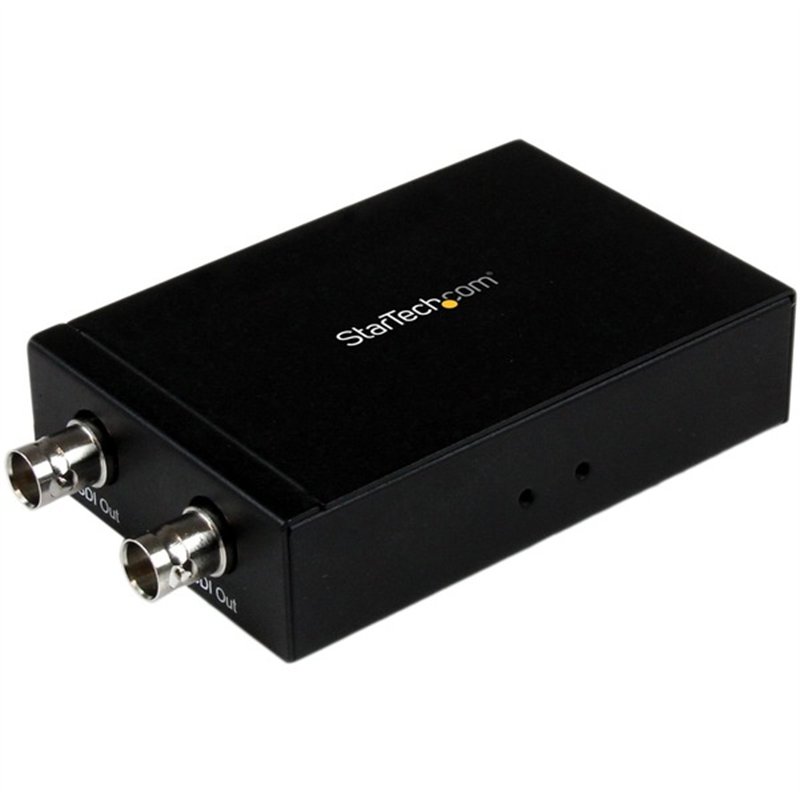

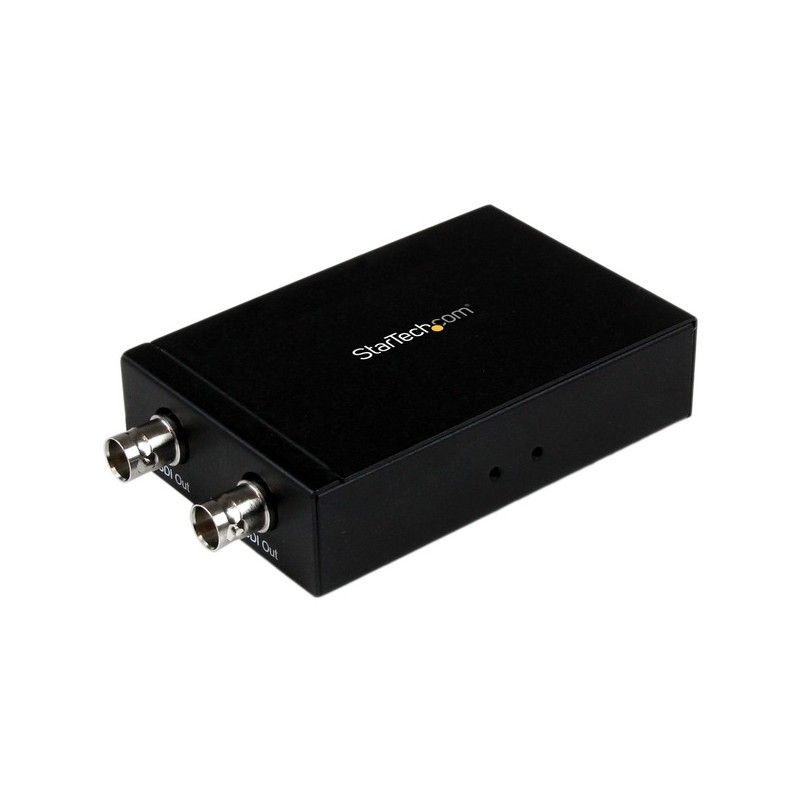

StarTech.com HDMI to SDI Converter &acirc&euro" HDMI to 3G SDI Adapter with Dual SDI Output - Connect an SDI Display to your HDM

Reference: STCHD2SDI

Condition: New product

Manufacturer:

99999 Items

$260.99

More info

The HD2SDI HDMI to dualSDI converter enables you to turn your HDMI audio/video signalinto two3G SDI video outputs. The 3G SDI video outputs can then be individually extended up to 755ft (230m) over standard coaxial cable for large scale HD-SDIvideo distribution. With dual SDIoutputs, you can connect your HDMI video source toa local SDI displayand outputan additional SDI signal into your broadcasting equipment, providing a scalable solution for anySDIbroadcasting application that requires an HDMI input. To ensure you maintainperfect high-definition video quality, theHD-SDI convertersupports resolutions up to1080p, which lets you convert HDMI to SDI withoutsacrificing video quality. For hassle-free installation, the HDMI to SDI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation. The HD2SDI isbacked by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:HD2SDI
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:HDMI to SDI Converter - HDMI to 3G SDI Adapter with Dual SDI Output
Packaged Quantity:1
Marketing Information:

The HD2SDI HDMI to dualSDI converter enables you to turn your HDMI audio/video signalinto two3G SDI video outputs. The 3G SDI video outputs can then be individually extended up to 755ft (230m) over standard coaxial cable for large scale HD-SDIvideo distribution.

With dual SDIoutputs, you can connect your HDMI video source toa local SDI displayand outputan additional SDI signal into your broadcasting equipment, providing a scalable solution for anySDIbroadcasting application that requires an HDMI input.

To ensure you maintainperfect high-definition video quality, theHD-SDI convertersupports resolutions up to1080p, which lets you convert HDMI to SDI withoutsacrificing video quality.

For hassle-free installation, the HDMI to SDI converter offers a plug-and-play solution that includes pre-installed mounting brackets and requires no software or driver installation.

The HD2SDI isbacked by a StarTech.com 2-year warranty and free lifetime technical support.


Product Type:Signal Converter

Technical Information
Functions:Video Conversion
Maximum Resolution:1920 x 1200
Maximum Frame Rate:60 fps
Maximum Data Transfer Rate:11.88 Gbit/s
Digital Signal:Yes
Interfaces/Ports
HDMI:Yes
Number of HDMI Inputs:1
Component Video:Yes
Component Video Connector Type:BNC
SDI:Yes
Number of SDI Outputs:2
Physical Characteristics
Product Color:Black
Form Factor:Rack-mountable
Height:1"
Width:2.8"
Length:3.9"
Weight (Approximate):0.44 lb
Miscellaneous
Package Contents:
  • HDMI to SDI Converter - HDMI to 3G SDI Adapter with Dual SDI Output
  • 1 x Mounting bracket assembly (attached)
  • 1 x Universal Power Adapter (NA/UK/EU/)
  • 1 x Instruction Manual

System Requirements:
  • The converter is intended for distribution of original content.
  • Digitally encrypted HDMI sources will not be converted.

Certifications & Standards:
  • CE
  • FCC

Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:2 Year
