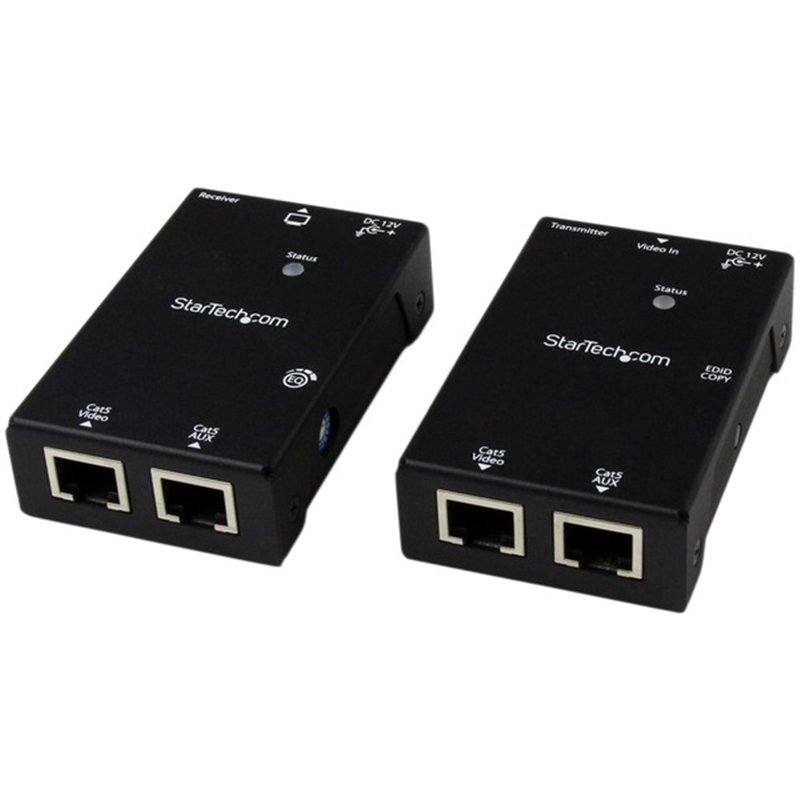

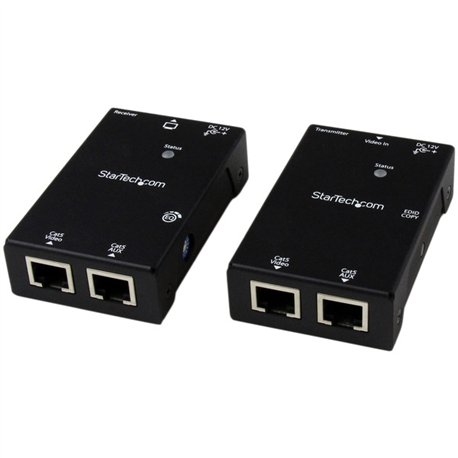

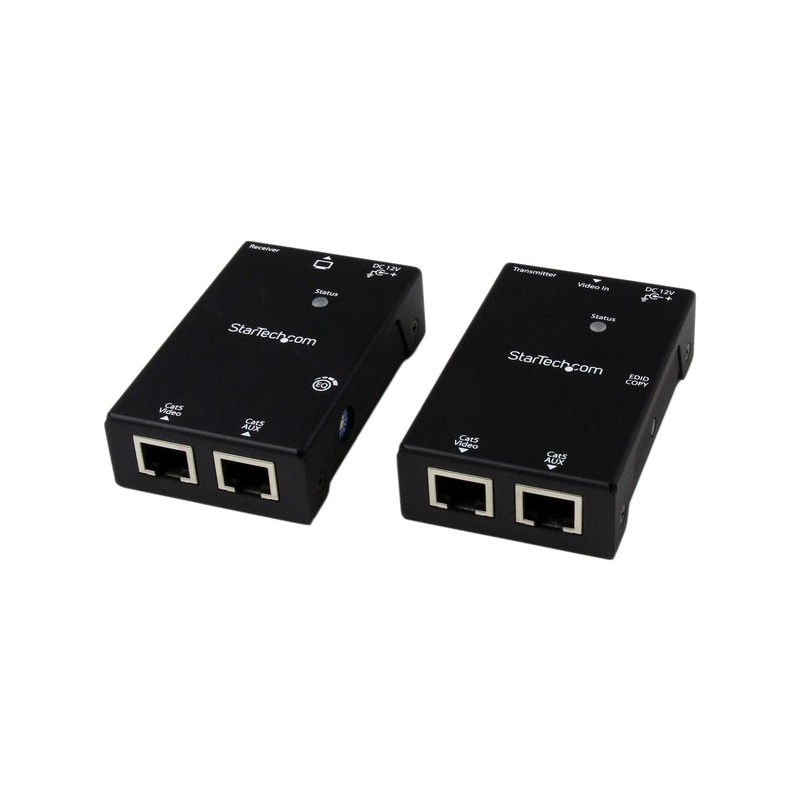

StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m) - Extend HDMI up to 165ft (50m) over Cat5e/6 cab

Reference: STCST121SHD50

Condition: New product

Manufacturer:

99999 Items

$210.34

More info

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST121SHD50
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)
Marketing Information:

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.

For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


Packaged Quantity Condition:Kit
Product Type:Video Extender Transmitter/Receiver

Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Daisy Chain:No
Maximum Operating Distance:164.04 ft
Video
Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080
Interfaces/Ports
Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
Number of Network (RJ-45) Ports:4
Number of HDMI Inputs:1
Number of HDMI Outputs:1
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC

Physical Characteristics
Product Color:Black
Product Material:Aluminum
Transmitter Height:0.80"
Transmitter Width:2"
Transmitter Depth:3.10"
Receiver Height:0.80"
Receiver Width:2"
Receiver Depth:3.10"
Length:3.1"
Form Factor:Rack-mountable
Transmitter Weight (Approximate):11.08 oz
Receiver Weight (Approximate):11.08 oz
Miscellaneous
Package Contents:
  • 1 x HDMI over CAT5e/6 UTP Transmitter
  • 1 x HDMI over CAT5e/6 UTP Receiver
  • 1 x Universal Power Adapter (NA / EU / UK / AU)
  • 2 x Mounting Brackets
  • 2 x Foot Pad Set
  • 1 x Instruction Manual

Certifications & Standards:
  • CE
  • FCC

Environmentally Friendly:Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH

Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
