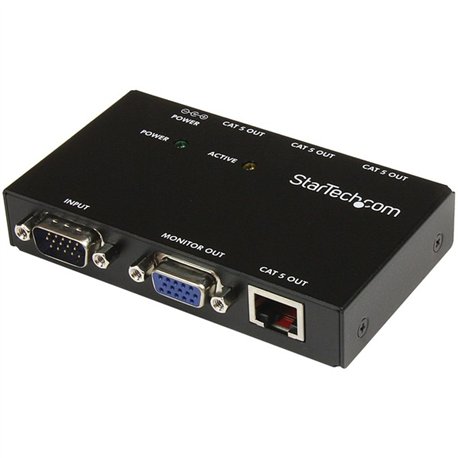

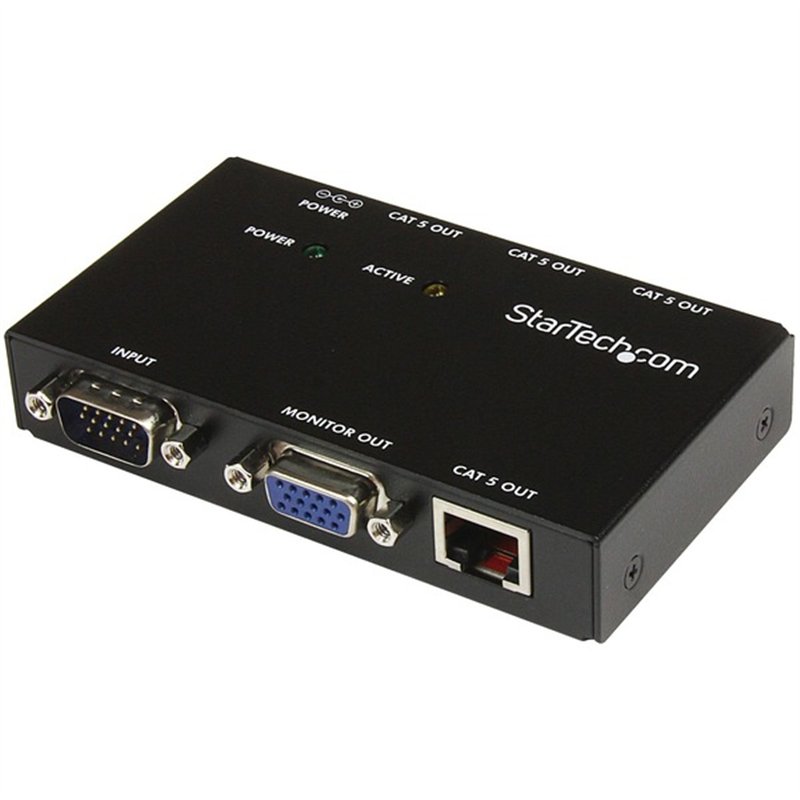

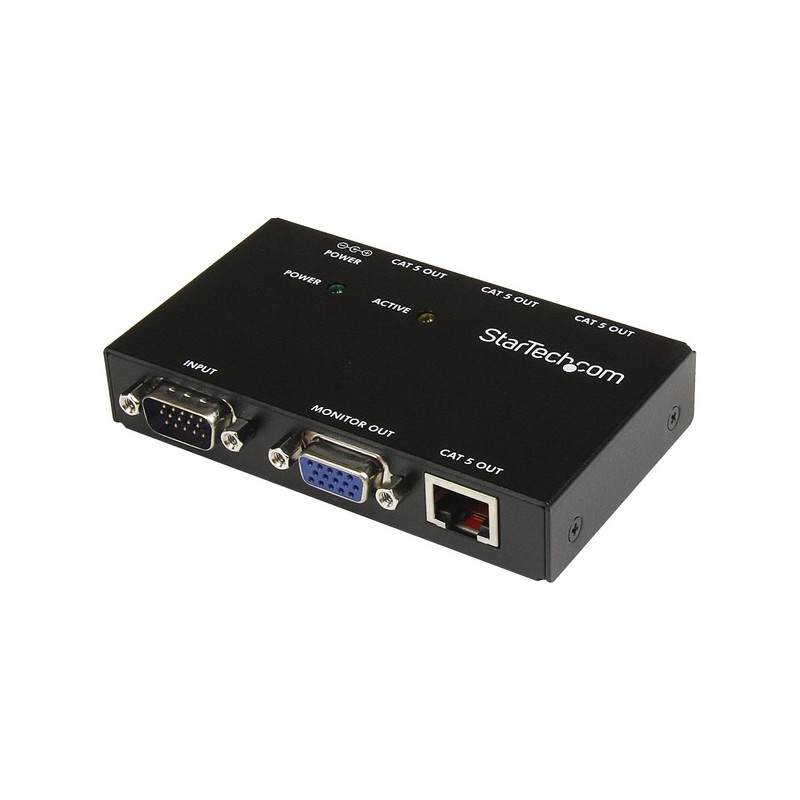

StarTech.com 4 Port VGA Over CAT5 Video Extender - 450ft (150m) - Extend and distribute a VGA signal to up to 4 displays over Ca

Reference: STCST1214T

Condition: New product

Manufacturer:

99999 Items

$219.99

More info

The ST1214T 4 Port VGA Video Extender over Cat 5 allows a single VGA source to be broadcast to up to four remote displays at distances of up to 500 feet (150 meters). Designed for use with our ST121 VGA Video over Cat 5 extension series of devices, the ST1214T is one of many options designed to help you create a custom VGA distribution and extension solution for many applications including digital signage and video conferencing. Consisting of the transmitter unit only, this product requires a single ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST1214T
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:4 Port VGA Video Extender over Cat 5
Marketing Information:

The ST1214T 4 Port VGA Video Extender over Cat 5 allows a single VGA source to be broadcast to up to four remote displays at distances of up to 500 feet (150 meters). Designed for use with our ST121 VGA Video over Cat 5 extension series of devices, the ST1214T is one of many options designed to help you create a custom VGA distribution and extension solution for many applications including digital signage and video conferencing.

Consisting of the transmitter unit only, this product requires a single ST121EXT VGA over Cat 5 Repeater can be used to increase the total VGA extension distance by an additional 500 feet(150 meters), allowing the original VGA signal to be broadcast a total distance of 1000 feet (300 meters) from transmitter to receiver. Similarly, up to three repeater units can be used between the transmitter and receiver units allowing a monitor to be connected at each repeater station , while further extending the total distance between the transmitter and receiver units.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


Product Type:Video Extender Transmitter

Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Maximum Operating Distance:492.13 ft
Video
Graphics Modes:VGA
Maximum Video Resolution:1600 x 1200
Interfaces/Ports
Network (RJ-45):Yes
VGA In:Yes
VGA Out:Yes
Number of Network (RJ-45) Ports:4
Number of VGA Inputs:1
Number of VGA Outputs:1
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5
Power Description
Input Voltage:9 V DC
Physical Characteristics
Product Color:Black
Transmitter Height:0.80"
Transmitter Width:2.50"
Transmitter Depth:4.10"
Form Factor:Desktop
Transmitter Weight (Approximate):7.09 oz
Miscellaneous
Package Contents:
  • 4 Port VGA Video Extender over Cat 5
  • 4 x Rubber Feet
  • 1 x Universal Power Adapter (NA/UK/EU)

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
