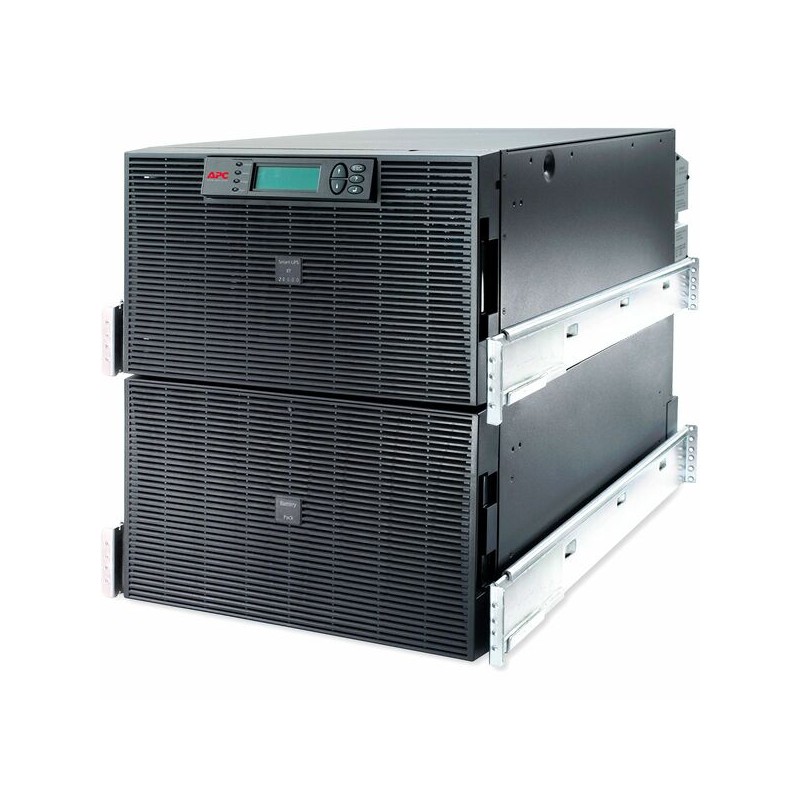

APC Smart-UPS RT 20000VA Tower/Rack Mountable UPS - 20000VA/16000W - 4.9 Minute Full Load - 1 x Hard Wire 3-wire (2PH + G), 4 x

General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT20KRMXLT
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:RT
Product Name:Smart-UPS RT 20000VA Tower/Rack Mountable UPS
Marketing Information:

Smart-UPS RT 20000VA Tower/Rack Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Product Type:Double Conversion Online UPS

Technical Information

---

Plug/Connector Type:Hard Wire 3-wire (2PH + G)
Receptacle Type:

• NEMA L6-20R
• NEMA L6-30R

Receptacle Detail:

• 2 x NEMA L6-30R
• 4 x NEMA L6-20R

Number of Battery & Surge Outlets:6
Bypass Switch:

• Static
• Internal
• Automatic & Manual
• External (Optional)

Emergency Power OFF:Yes

Power Description

---

Load Capacity:20 kVA/16 kW
Input Voltage:208 V
Input Current:114 A
Output Voltage:208 V AC
Waveform Type:Sine Wave

Management

---

Network Management:SNMP Manageable

Interfaces/Ports

---

Serial Port:Yes
Network (RJ-45):Yes

Battery Information

---

Number of Batteries:4
Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):4.90 Minute
Backup/Run Time (Half Load):15.30 Minute
Typical Battery Recharge Time:2 Hour
Hot Swappable:Yes

Physical Characteristics

---

Color Family:Black
Product Color:Black
Height:21"
Width:17"
Depth:30.4"
Rack Height:12U
Form Factor:Rack-mountable
Mounting Preference:Lower
Mounting Location:Front
Weight (Approximate):546.15 lb

Miscellaneous

---

Package Contents:

Smart-UPS RT 20000VA Tower/Rack Mountable UPS

CD with software

Rack mounting support rails

Smart UPS signalling RS-232 cable

User manual

Web/SNMP management card

Certifications & Standards:UL 1778
Software Included:PowerChute Management Software
Environmentally Friendly:Yes
Environmental Certification:RoHS
Green Premium:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT_ROHS_DECLARATION&p_FileName=SURT20KRMXLTKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765796&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765796&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
California Proposition 65 Warning:WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC:No

Warranty

---

Limited Warranty:2 Year
Additional Warranty Information:2 years repair or replace
