  5. APC by Schneider Electric Smart-UPS SRT 8000VA 208V IEC - Rack-mountable - 1.50 Hour Recharge - 5 Minute Stand-by - 208 V AC Inp

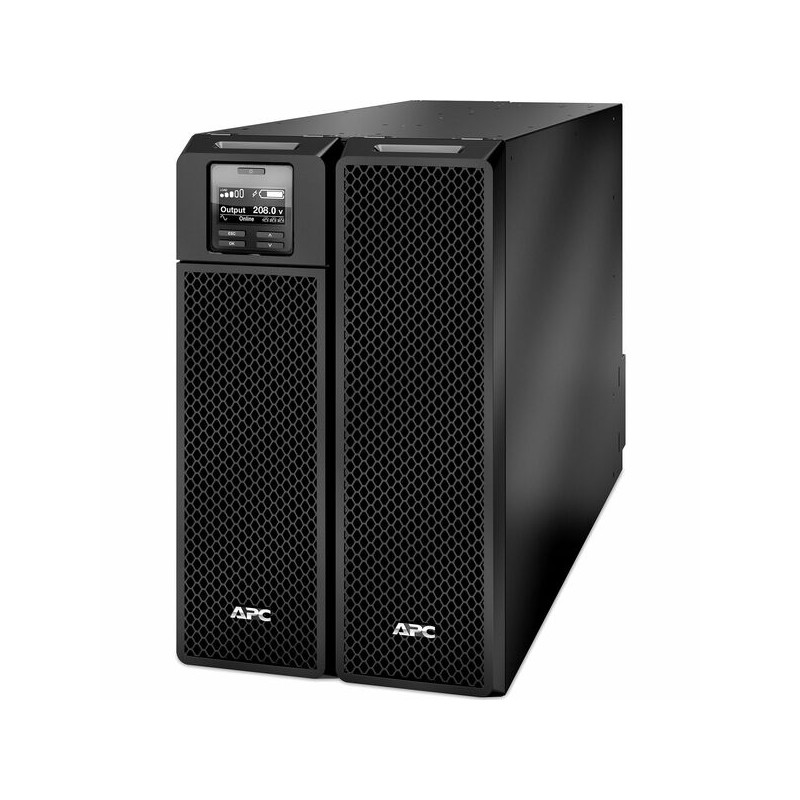

APC by Schneider Electric Smart-UPS SRT 8000VA 208V IEC - Rack-mountable - 1.50 Hour Recharge - 5 Minute Stand-by - 208 V AC Inp

Reference: APWSRT8KXLTIEC

Condition: New product

Manufacturer:

99999 Items

$12,024.99

More info

High density, double-conversion on-line power protection with scalable runtime Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SRT8KXLT-IEC
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Name:Smart-UPS SRT 8000VA 208V IEC
Marketing Information:

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.


Product Type:Double Conversion Online UPS

Technical Information
Plug/Connector Type:Hardwire 3-wire
Receptacle Type:
  • IEC 60320 C13
  • IEC 60320 C19
  • Hard Wire 3-wire (2PH + G)
  • RJ-45
  • USB

Receptacle Detail:
  • 3 x IEC Jumper
  • 4 x IEC 60320 C19
  • 6 x IEC 60320 C13

Number of Battery & Surge Outlets:13
Power Description
Load Capacity:8000 VA
Input Voltage:208 V AC
Output Voltage:208 V AC
Waveform Type:Sine Wave
Surge Energy Rating:480 J
Management
Network Management:SNMP Manageable
Battery Information
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):5 Minute
Backup/Run Time (Half Load):14.80 Minute
Typical Battery Recharge Time:1.50 Hour
Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Mounting Location:Front
Height:17"
Width:10.4"
Depth:28.1"
Weight (Approximate):245.99 lb
Miscellaneous
Package Contents:
  • Smart-UPS SRT 8000VA 208V IEC
  • CD with software
  • Documentation CD
  • Installation guide
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card

    • Certifications & Standards:ENERGY STAR V2.0 (USA)|FCC part 15 class A|UL 1778
    Energy Star:Yes
    Environmentally Friendly:Yes
    Environmental Certification:RoHS
    Green Premium:Yes
    Optimized Energy Efficiency:Yes
    Product Take Back Program:Yes
    Mercury Free:Yes
    RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT8KXLT-IEC_ROHS_DECLARATION&p_FileName=SRT8KXLT-IECKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135509&lang=en-us
    EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135509&lang=en-us
    Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN
    End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
    California Proposition 65 Warning:WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Energy Star URL:https://www.energystar.gov/products/uninterruptible_power_supplies
    REACH free of SVHC:No
    WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Warranty
    Limited Warranty:3 Year
    Additional Warranty Information:3 years repair or replace (excluding battery) and 2 years for battery
