StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft) - Operate a USB & VGA KVM or PC up to 500ft away as if it were

Reference: STCSV565UTPU

Condition: New product

Manufacturer:

99999 Items

$300.99

More info

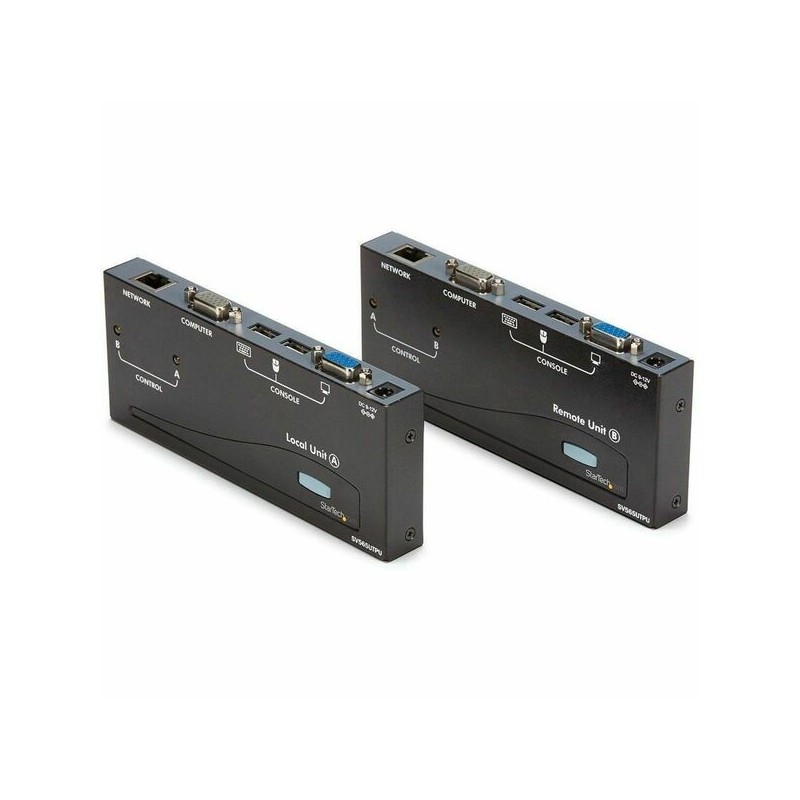

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SV565UTPU
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:SV565UTPU
Product Name:USB VGA KVM Console Extender over CAT5 UTP - 500 ft
Marketing Information:

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


Packaged Quantity:1
Packaged Quantity Condition:Kit
Product Type:KVM Console/Extender

Technical Information
Connectivity Technology:Wired
KVM Technology:Analog
Number of Computers Supported:2
Number of Local Users Supported:1
Number of Remote Users Supported:1
Maximum Operating Distance:500 ft
Video
Graphic Mode:XGA
Maximum Video Resolution:1024 x 768
Interfaces/Ports
Network (RJ-45):Yes
USB:Yes
VGA:Yes
Number of VGA Ports:4
Number of Network (RJ-45) Ports:2
Number of USB Ports:4
Power Description
Input Voltage:
  • 120 V AC
  • 240 V AC

Input Voltage Range:110V AC to 240V AC
Power Consumption:5.40 W
Physical Characteristics
Product Color:Black
Form Factor:Desktop
Transmitter Height:0.80"
Transmitter Width:6.10"
Transmitter Depth:3"
Receiver Height:0.80"
Receiver Width:6.10"
Receiver Depth:3"
Transmitter Weight (Approximate):1.35 lb
Receiver Weight (Approximate):1.35 lb
Miscellaneous
Package Contents:
  • 1 x Host Unit
  • 1 x Remote Unit
  • 2 x 6 ft 2-in-1 USB VGA KVM Cables
  • 8 x Rubber Feet
  • 1 x Power Adapter
  • 1 x Instruction Manual

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
