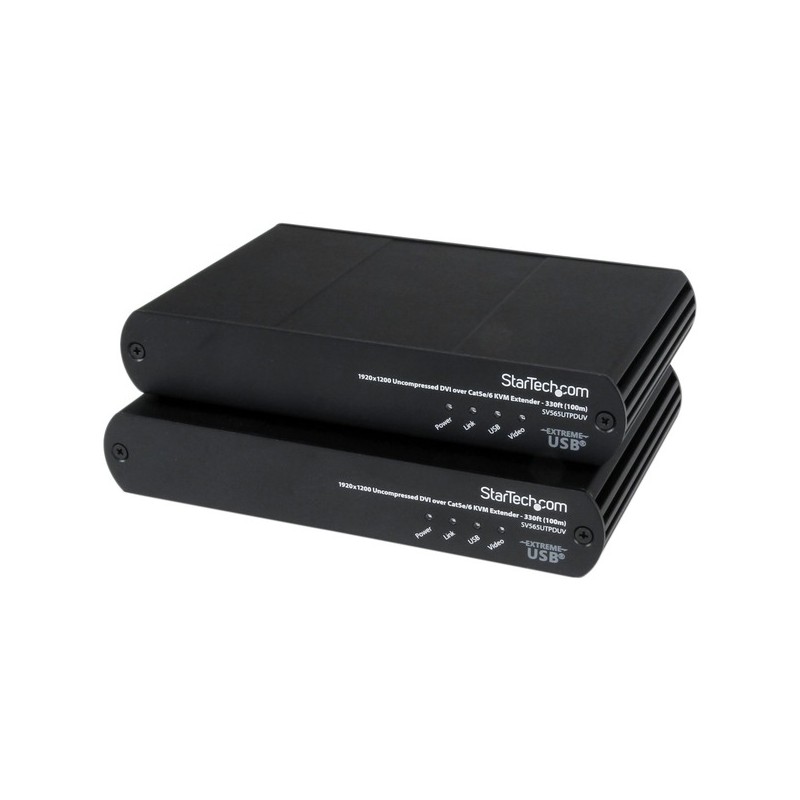

StarTech.com USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920x1200 Uncompressed Video - 330ft (100m) - Operate a PC from

Reference: STCSV565UTPDUV

Condition: New product

Manufacturer:

99999 Items

$1,469.99

More info

The SV565UTPDUV USB DVI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1920x1200 DVI video and access to up to 3 connected USB devices. A flexible solution for powering large high-definition displays remotely, this DVI USB extender supports uncompressed 1920x1200 video resolution at maximum distance, with 24-bit color depth. This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SV565UTPDUV
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:KVM Console/Extender
Marketing Information:

The SV565UTPDUV USB DVI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1920x1200 DVI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this DVI USB extender supports uncompressed 1920x1200 video resolution at maximum distance, with 24-bit color depth.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Packaged Quantity:1
Packaged Quantity Condition:Kit
Product Type:KVM Console/Extender

Technical Information
Connectivity Technology:Wired
Number of Computers Supported:1
Number of Local Users Supported:1
Maximum Operating Distance:330 ft
Video
Graphic Mode:WUXGA
Maximum Video Resolution:1920 x 1200
Interfaces/Ports
Network (RJ-45):Yes
USB:Yes
DVI:Yes
Number of Network (RJ-45) Ports:2
Number of USB Ports:4
Number of DVI Ports:2
Power Description
Input Voltage:
  • 120 V AC
  • 240 V AC

Input Voltage Range:100V AC to 240V AC
Power Consumption:15 W
Physical Characteristics
Product Color:Black
Transmitter Height:1.20"
Transmitter Width:6.90"
Transmitter Depth:4.40"
Receiver Height:1.20"
Receiver Width:6.90"
Receiver Depth:4.40"
Transmitter Weight (Approximate):1.89 lb
Receiver Weight (Approximate):1.89 lb
Miscellaneous
Package Contents:
  • Local Extender Unit
  • Remote Extender Unit
  • 1 x DVI Cable
  • 1 x USB Cable
  • 2 x Universal Power Adapters (NA/EU/UK)
  • 1 x Quick-Start Guide
  • 1 x Mounting Kit

Certifications & Standards:
  • CE
  • FCC

Environmentally Friendly:Yes
Country of Origin:China
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
