StarTech.com PCI to PCI Express Adapter Card - Install half-height/low profile x1 PCI Express interface cards in a standard PCI

Reference: STCPCI1PEX1

Condition: New product

Manufacturer:

99999 Items

$74.99

More info

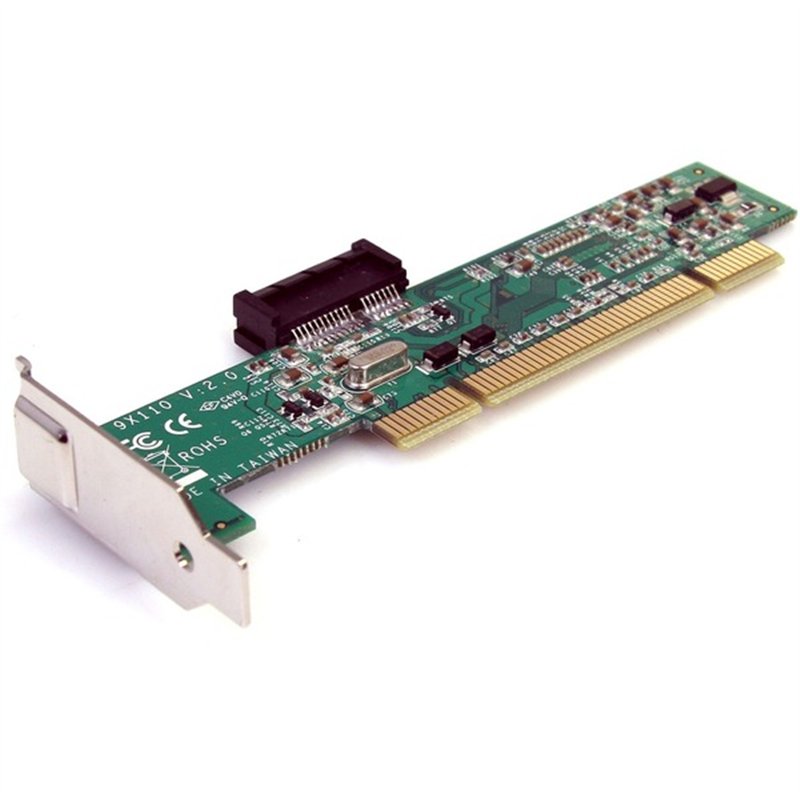

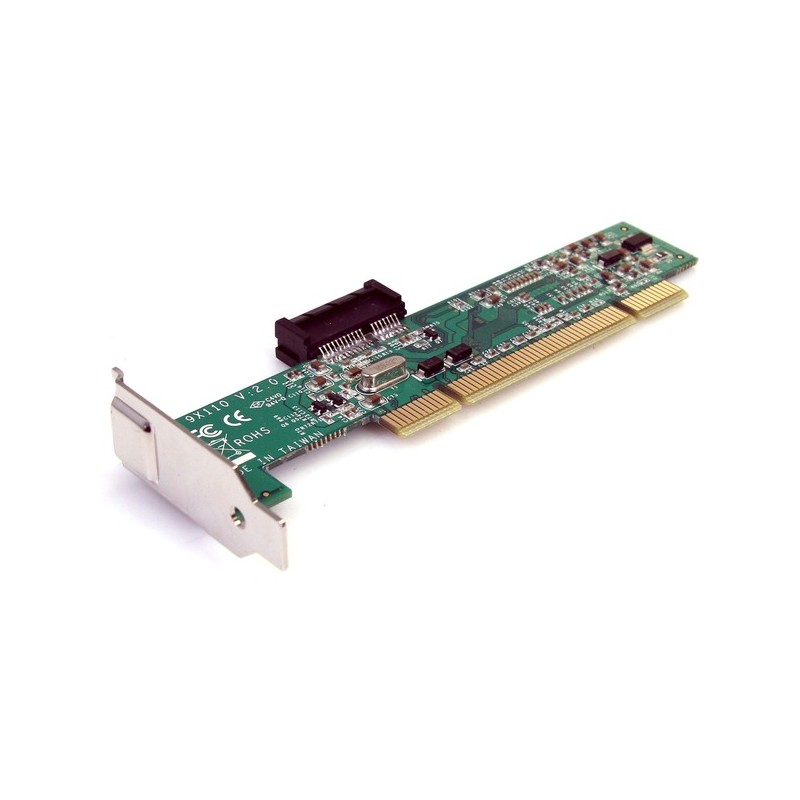

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card. The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PCI1PEX1
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:PCI1PEX1
Product Name:PCI to PCI Express Adapter Card
Marketing Information:

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.


Product Type:Riser Card

Technical Information
Host Interface:PCI
I/O Expansions
Number of Total Expansion Slots:1
Expansion Slot Type:PCI Express (Low-profile)
Physical Characteristics
Height:0.8"
Width:2.4"
Depth:5.3"
Thickness:790 mil
Weight (Approximate):1.13 oz
Miscellaneous
Package Contents:
  • PCI to PCI Express Adapter Card
  • 1 x Spare Full Profile Bracket
  • 1 x Instruction Manual

Additional Information:
  • The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

Environmentally Friendly:Yes
Country of Origin:Taiwan
Warranty
Limited Warranty:2 Year
