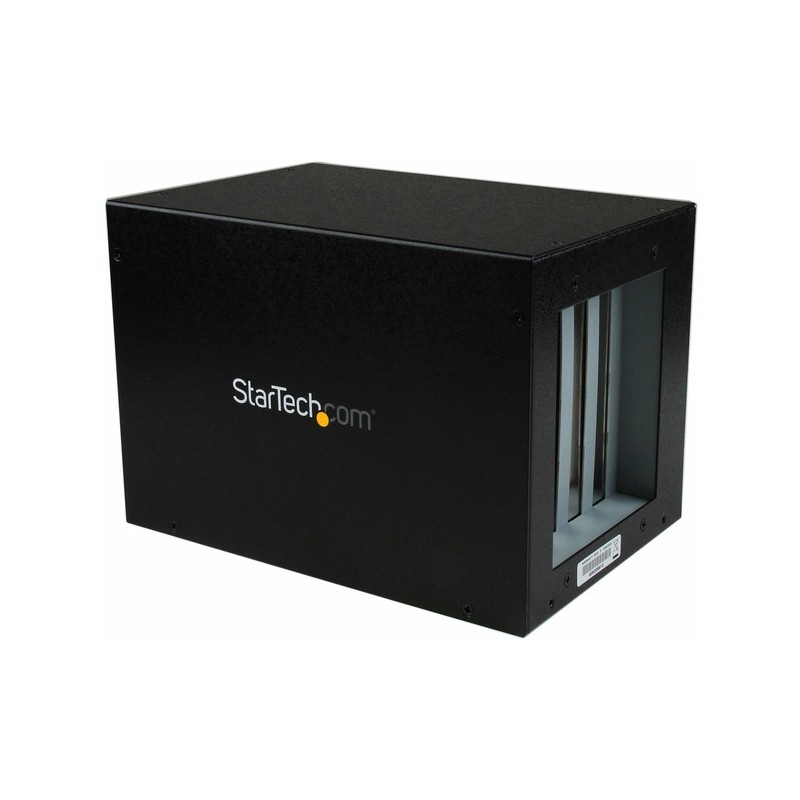

StarTech.com PCI Express to 4 Slot PCI Expansion System - PCI Express to Four Slot PCI Expansion Bay - System bus extender - Add

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.

The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. The PCIe controller card connects directly to the PCI Expansion box with an included DVI cable for a reliable, high quality connection.

A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support.

Product Type:Expansion Chassis

• Aluminum
• Steel

• 1 x PCI Expansion Box
• 1 x PCI Express Card
• 1 x 3ft DVI Cable
• 1 x Low Profile Bracket
• 1 x Screw Kit
• 1 x Power Cable
• 1 x Universal Power Adapter

• Connector Type(s): PCI Express x1
• External Ports: PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Slot

• Laptop
• PC
