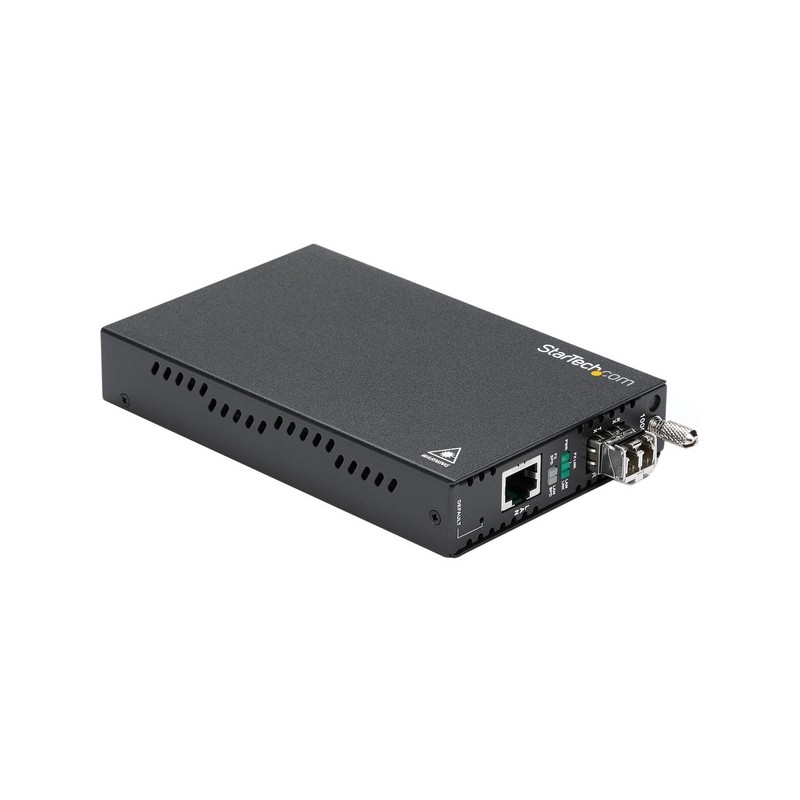

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant - Convert and extend a
Reference: STCET91000LCOAM
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Manufacturer:StarTech.com
Manufacturer Part Number:ET91000LCOAM
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:OAM Managed Gigabit Ethernet Fiber Media Converter
Marketing Information:
The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity:1
Product Type:Transceiver/Media Converter
Total Number of Ports:2
Network (RJ-45):Yes
DVI:No
USB:No
Parallel Port:No
Digital Audio:No
Digital Audio/Video:No
Management Port:No
Number of LC Ports:1
LC Port Type:Duplex
Number of Network (RJ-45) Ports:1
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported:Multi-mode
Fiber Optic Wavelength:850 nm
Maximum Distance Supported:1804.46 ft
Ethernet Technology:Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-LX/SX
Power Source:AC Adapter
Input Voltage:12 V DC
Power Consumption:12 W
Plug/Connector Type:Type M
Product Color:Black
Form Factor:External
Height:0.9"
Width:3.4"
Depth:6.4"
Weight (Approximate):14.50 oz
Package Contents:
- OAM Managed Gigabit Ethernet Fiber Media Converter
- 1 x Grounding Screw
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Instruction Manual
Compatibility:StarTech 2U Rackmount Chassis (ETCHS2U)
Certifications & Standards:
- CE
- FCC
- 802.3
- 802.3ab
- 802.3ah
- 802.3u
- 802.3z
Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Limited Warranty:2 Year
