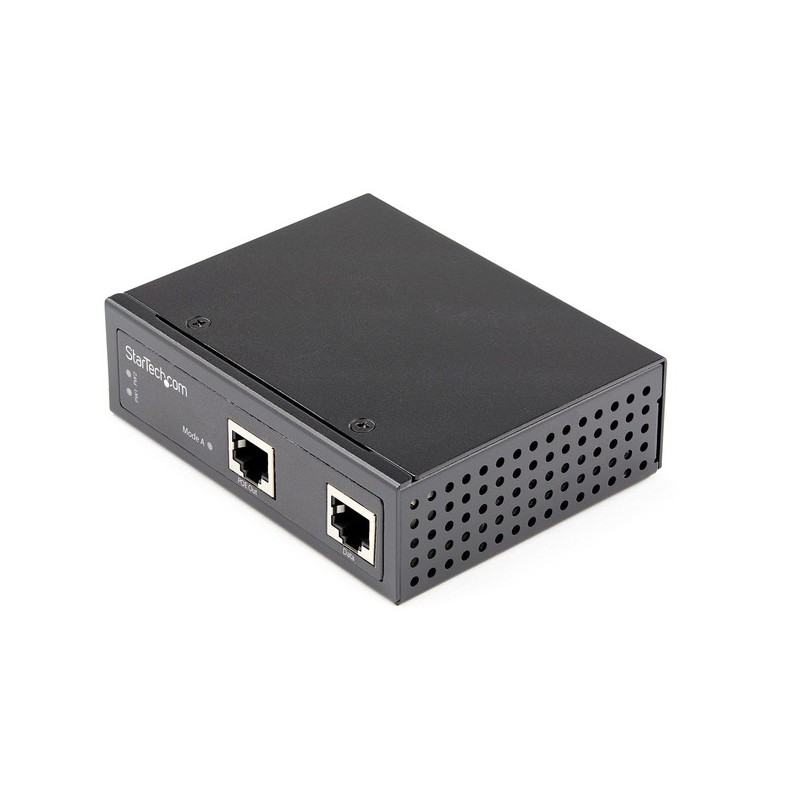

StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -4
Reference: STCPOEINJ30W
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Manufacturer:StarTech.com
Manufacturer Part Number:POEINJ30W
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:POEINJ30W
Product Name:POEINJ30W PoE Injector
Marketing Information:
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power BudgetProvides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Type:PoE Injector
Protection Type:Overload Protection
Input Voltage:56 V DC
Input Ports:1 x Fast Ethernet
Output Ports:1 x PoE+
Product Color:Black
Form Factor:DIN Rail/Wall Mountable
Package Contents:
- POEINJ30W PoE Injector
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- EN 60068-2-6
- EN 60068-2-32
- MET (UL) 60950-1
- EN60950-1
Environmentally Friendly:Yes
Country of Origin:Taiwan
Limited Warranty:2 Year
