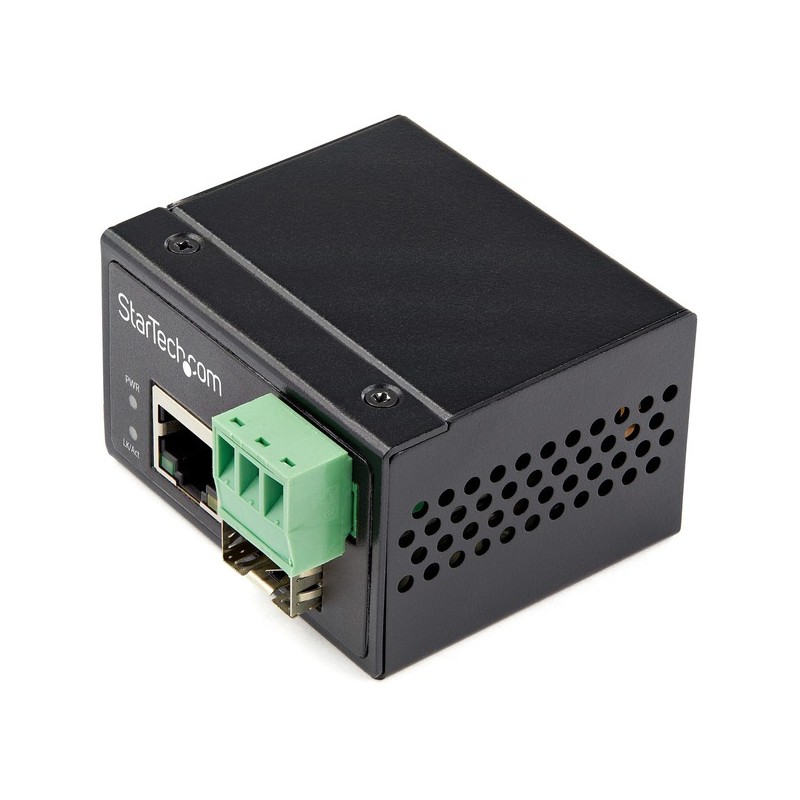

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/CAT6 SM/MM - Fiber to Copper Network - IP-30 12V
Reference: STCIMC100MSFP
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Manufacturer:StarTech.com
Manufacturer Part Number:IMC100MSFP
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Transceiver/Media Converter
Marketing Information:
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different RequirementsThis media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
For Mission-Critical ApplicationsDesigned with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-Fall: EN 60068-2-32
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Type:Transceiver/Media Converter
Total Number of Ports:1
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Media Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported:
- Single-mode
- Multi-mode
Maximum Distance Supported:328.08 ft
Number of Total Expansion Slots:1
Expansion Slot Type:SFP
Number of SFP Slots:1
Ethernet Technology:Fast Ethernet
Network Technology:
- 100Base-TX
- 100Base-FX
Power Source:Power Supply
Power Consumption:1.92 W
Plug/Connector Type:
- Terminal Block
- Type N
Form Factor:
- Wall Mountable
- DIN Rail Mountable
Height:2"
Width:1.4"
Depth:2.3"
Weight (Approximate):2.90 oz
Package Contents:
- Transceiver/Media Converter
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
Environmentally Friendly:Yes
Country of Origin:Taiwan
Limited Warranty:2 Year
