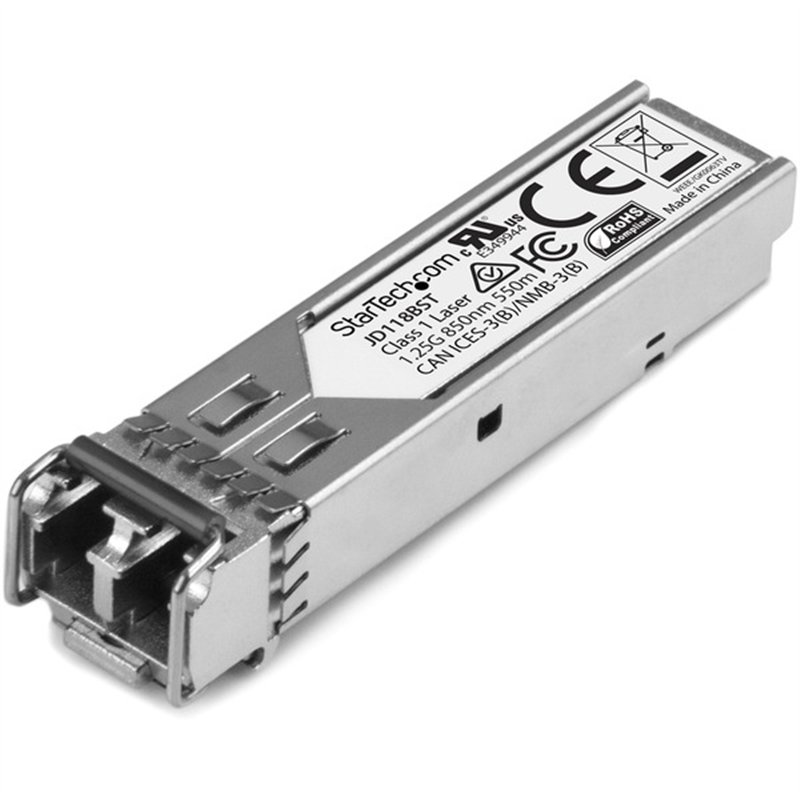

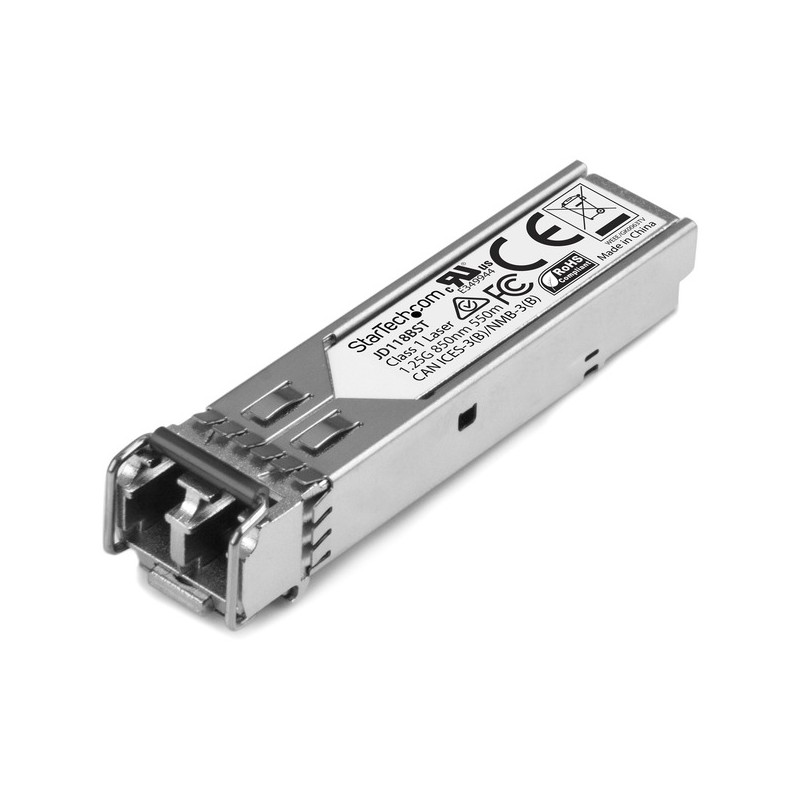

StarTech.com HPE JD118B Compatible SFP Module - 1000BASE-SX - 1GE Gigabit Ethernet SFP 1GbE Multi Mode (MMF) Fiber Optic Transce

Reference: STCJD118BST

Condition: New product

Manufacturer:

99999 Items

$79.99

More info

The JD118BST is an HP JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft). Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550 m (1804 ft) MTBF: 3,381,761 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:JD118BST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:HP JD118B Compatible SFP Transceiver Module - 1000BASE-SX
Marketing Information:The JD118BST is an HP JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:
  • Wavelength: 850 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 550 m (1804 ft)
  • MTBF: 3,381,761 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.


Packaged Quantity:1
Product Type:SFP (mini-GBIC)

Technical Information
Application/Usage:
  • Data Networking
  • Optical Network

Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 1000Base-SX Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Multi-mode
Ethernet Technology:Gigabit Ethernet
Network Technology:1000Base-SX
Physical Characteristics
Form Factor:
  • Hot-pluggable
  • Hot-swappable

Height:0.5"
Width:0.5"
Depth:2.2"
Weight (Approximate):0.04 lb
Miscellaneous
Compatibility:MSA Compliant

HPE Switches:

  • 5900
  • 12500
  • 5500
  • 5820
  • 5120

Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:Lifetime
