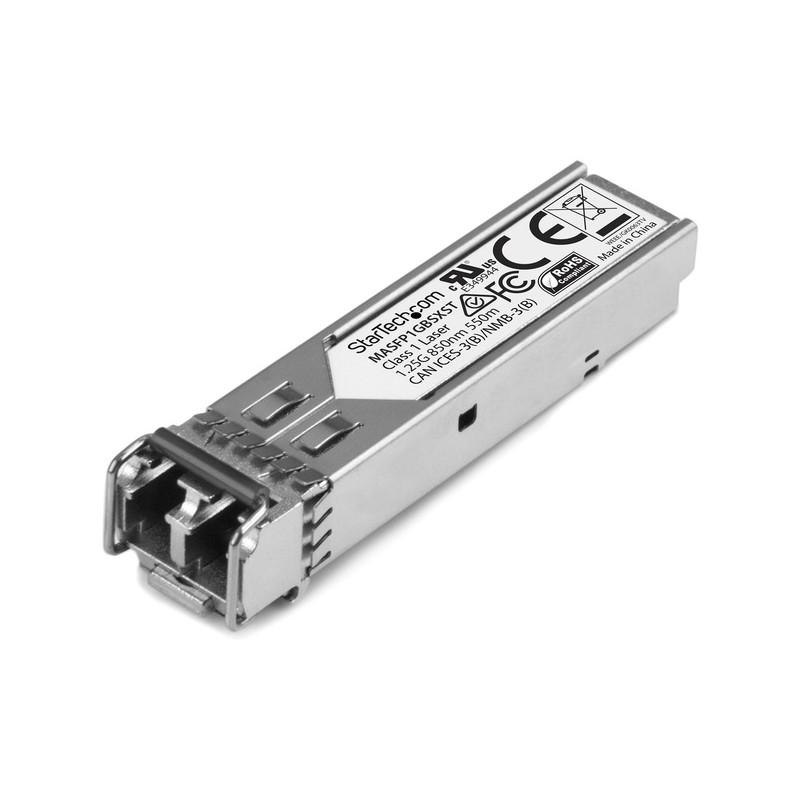

StarTech.com Cisco Meraki MA-SFP-1GB-SX Comp. SFP Module - 1000BASE-SX - 1GbE Gigabit Ethernet SFP Multimode Fiber MMF Optic Tra

Reference: STCMASFP1GBSXST

Condition: New product

Manufacturer:

99999 Items

$84.99

More info

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft). Technical Specifications: Wavelength: 850nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550m (1804 ft) MTBF: 1,967,709 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:MASFP1GBSXST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX
Marketing Information:The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).

Technical Specifications:
  • Wavelength: 850nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 550m (1804 ft)
  • MTBF: 1,967,709 hours
  • Power Consumption: Less than 1.2 Watts
  • Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.


Packaged Quantity:1
Product Type:SFP (mini-GBIC)

Technical Information
Application/Usage:
  • Data Networking
  • Optical Network

Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 1000Base-SX Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Multi-mode
Ethernet Technology:Gigabit Ethernet
Network Technology:1000Base-SX
Physical Characteristics
Form Factor:
  • Hot-pluggable
  • Hot-swappable

Height:0.5"
Width:0.5"
Depth:2.2"
Weight (Approximate):0.03 lb
Miscellaneous
Compatibility:
  • MSA Compliant
Cisco Meraki Switches:
  • MS225
  • MX400
  • MS250
  • MS350
  • MX84

Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:Lifetime
