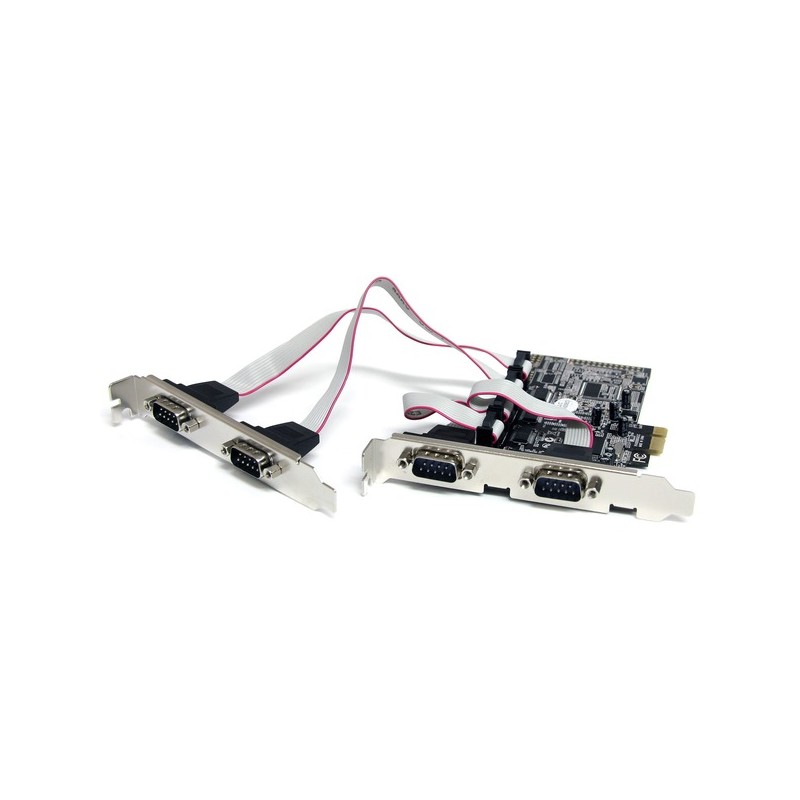

StarTech.com 4 Port PCIe Serial Adapter Card with 16550 - Add 4 RS-232 serial ports to your standard or small form factor comput

Reference: STCPEX4S553

Condition: New product

Manufacturer:

99999 Items

$165.99

More info

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot. Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards. The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PEX4S553
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
Marketing Information:

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.

Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.

The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Serial Adapter

Technical Information
Host Interface:PCI Express x1
Data Transfer Rate:128kB/s
UART Type:
  • 16550
  • 16C450

Platform Supported:PC
Interfaces/Ports
Number of Serial Ports (External):4
Physical Characteristics
Form Factor:Plug-in Card
Card Height:Dual-profile
Height:0.7"
Width:5.1"
Length:4.7"
Weight (Approximate):2.60 oz
Miscellaneous
Package Contents:
  • 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
  • 1 x Full Profile Bracket With Two DB9 Connectors
  • 4 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Additional Information:
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.10
  • Linux

  • Environmentally Friendly:Yes
    Country of Origin:China
    Warranty
    Limited Warranty:Lifetime
