StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - Add two RS232, and two RS422/485 serial p
Reference: STCPEX4S232485
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Manufacturer:StarTech.com
Manufacturer Part Number:PEX4S232485
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

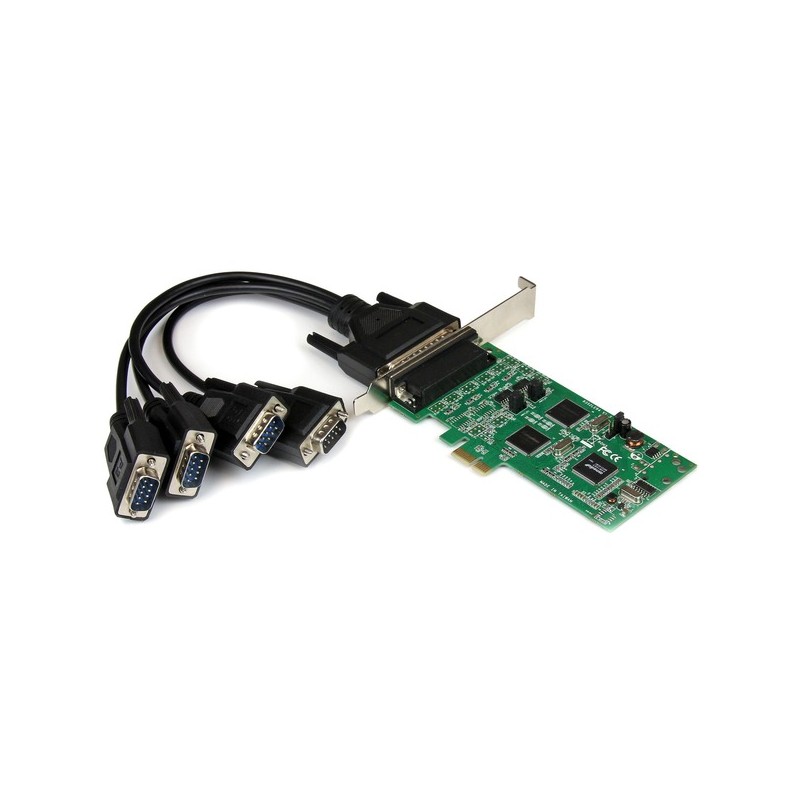

Product Name:4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
Marketing Information:
The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Packaged Quantity:1
Product Type:Multiport Serial Adapter
Host Interface:PCI Express x1
Maximum Data Transfer Rate:3.59 Mbit/s
Platform Supported:PC
Ports Expandability:4 x DB-9 RS-232/422/485 - Serial, Via Cable
Form Factor:Plug-in Card
Height:2.7"
Width:0.6"
Weight (Approximate):2.40 oz
Package Contents:
- 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
- 1 x Breakout Cable
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Environmentally Friendly:Yes
Environmental Certification:
- RoHS
- WEEE
- REACH
Country of Origin:Taiwan
TAA Compliant:Yes
Limited Warranty:Lifetime
