StarTech.com 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Sl

Reference: STCDP14MDPMM1MB

Condition: New product

Manufacturer:

99999 Items

$46.99

More info

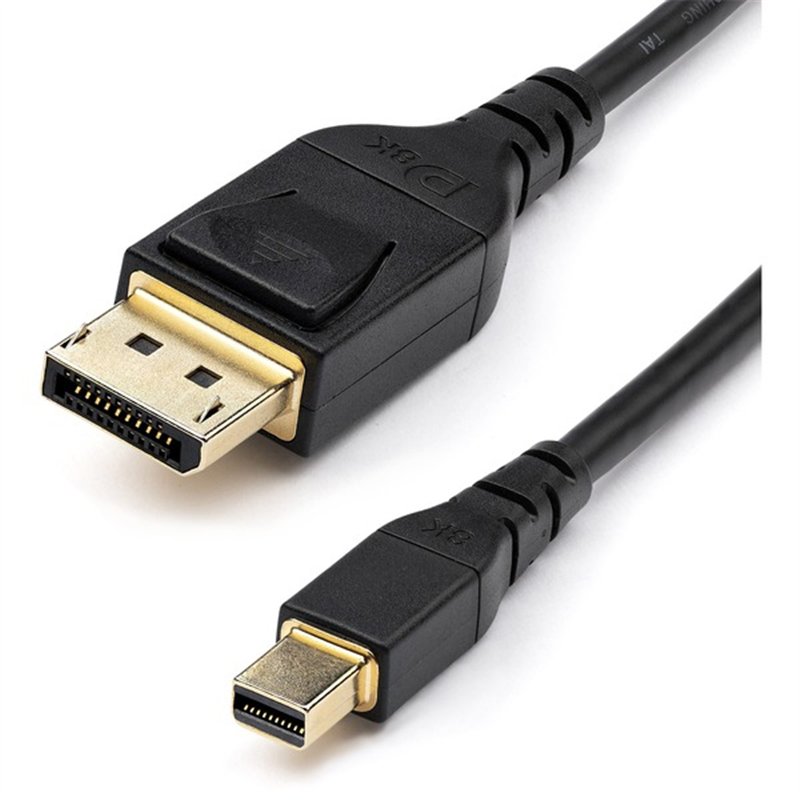

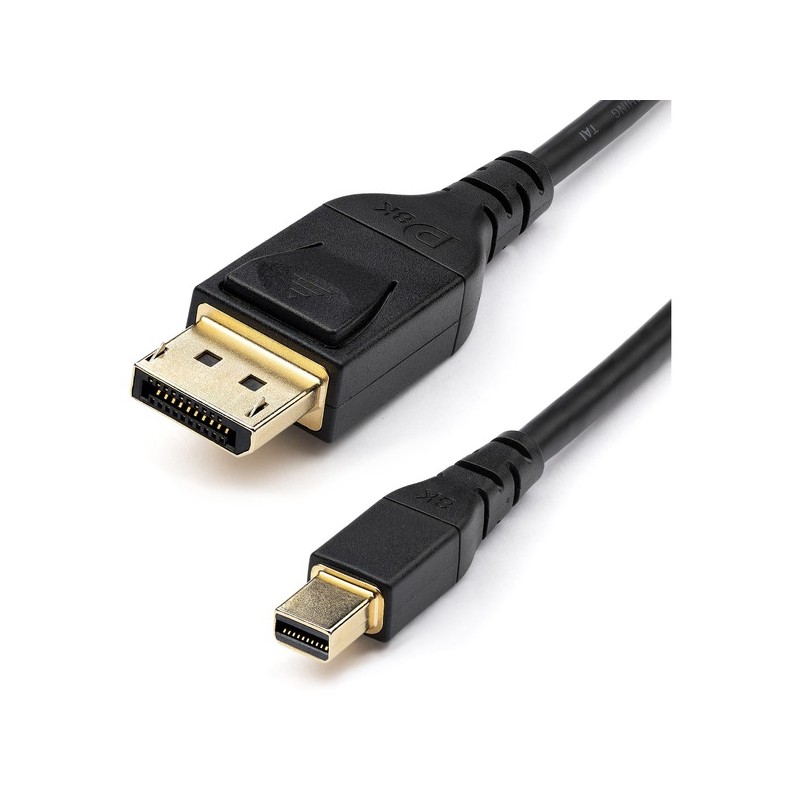

This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection. Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports: Multi-Stream Transport (MST) for daisy chaining multiple monitors. Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio. HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards. Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate. Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays. Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as: Radeon™ VII, SSG, WX x100, Pro and FirePro™ series. Nvidia Quadro P series. Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications. Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection. The DP14MDPMM1MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:DP14MDPMM1MB
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Mini Displayport to Displayport Cable
Marketing Information:This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection.

Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:

  • Multi-Stream Transport (MST) for daisy chaining multiple monitors.
  • Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.
  • HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards.
  • Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate.
  • Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays.

Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:

  • Radeon™ VII, SSG, WX x100, Pro and FirePro™ series.
  • Nvidia Quadro P series.

Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications.

Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection.

The DP14MDPMM1MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Type:Video Cable

Technical Information
Cable Type:DisplayPort/Mini DisplayPort
Cable Length:3.28 ft
Connector Type on First End:DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on First End:Male
Connector on First End Details:1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End:Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on Second End:Male
Connector on Second End Details:1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:Gold
Shielding:Yes
Device Supported:
  • Audio/Video Device
  • Notebook
  • Workstation
  • TV
  • Monitor
  • Projector
  • PC
  • MAC
  • Computer
  • Graphics Card

American Wire Gauge:34 AWG
Data Transfer Rate:32.4 Gbit/s
Supported Resolution:7680 x 4320
Features:
  • Display Stream Compression (DSC) 1.2
  • HDCP 2.2
  • Strain Relief
  • Bend Resistant
  • Stress Resistant
  • Latching Connector
  • DPCP
  • Multi-Stream Transport (MST) Support
  • Forward Error Correction (FEC) Support
  • EMI Protection
  • Tarnish Resistant

Physical Characteristics
Product Color:Black
Jacket Material:Polyvinyl Chloride (PVC)
Miscellaneous
Compatibility:

Nvidia Quadro Graphic Cards:

  • P620
  • P600
  • P400

AMD Graphic Cards:

  • Radeon Pro VII
  • Radeon Pro SSG
  • Radeon Pro WX9100
  • Radeon Pro WX4100
  • Radeon Pro WX3200
  • Radeon Pro WX3100
  • Radeon Pro WX2100
  • Radeon Pro W5700
  • Radeon Pro W5500
  • FirePro W9100
  • FirePro 900
  • FirePro 600
  • FirePro 4100

Country of Origin:China
Warranty
Limited Warranty:Lifetime
