StarTech.com 2S1P PCIe Parallel Serial Combo Card - Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profil

Reference: STCPEX2S5531P

Condition: New product

Manufacturer:

99999 Items

$74.99

More info

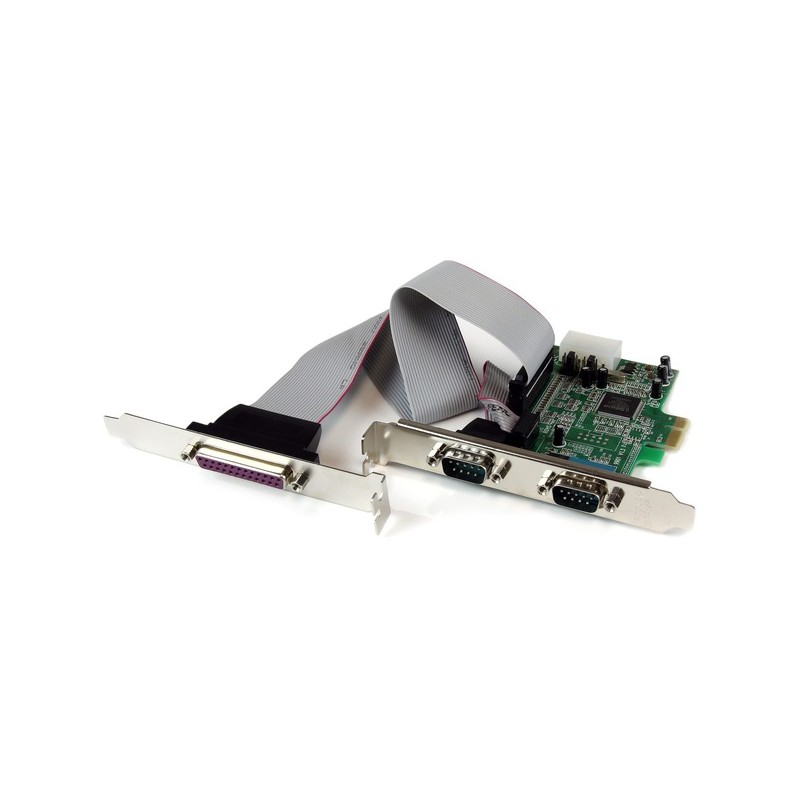

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design. Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor. This product is a replacement for our PEX2S5521P card. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PEX2S5531P
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:PEX2S5531P
Product Name:2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
Marketing Information:

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.

Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.

This product is a replacement for our PEX2S5521P card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Serial/Parallel Combo Adapter

Technical Information
Host Interface:PCI Express x1
Data Transfer Rate:
  • 1.5MB/s Parallel Port
  • 460.8kB/s Serial Port

UART Type:16550
Platform Supported:
  • PC
  • Mac
  • Linux

Interfaces/Ports
Number of Parallel Ports (External):1
Number of Serial Ports (External):2
Physical Characteristics
Form Factor:Plug-in Card
Card Height:Dual-profile
Height:0.8"
Width:4.7"
Length:4.1"
Weight (Approximate):4 oz
Miscellaneous
Package Contents:
  • 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
  • Parallel Port (with Ribbon Cable)
  • Low Profile Brackets
  • Driver CD
  • Instruction Manual

Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 - 10.6
  • Linux

    • Environmentally Friendly:Yes
    Country of Origin:Taiwan
    TAA Compliant:Yes
    Warranty
    Limited Warranty:2 Year
