StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16550 UART - Windows and
Reference: STCPEX2S553
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Manufacturer:StarTech.com
Manufacturer Part Number:PEX2S553
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:PEX2S553
Product Name:2 Port PCIe Serial Adapter Card with 16550
Marketing Information:

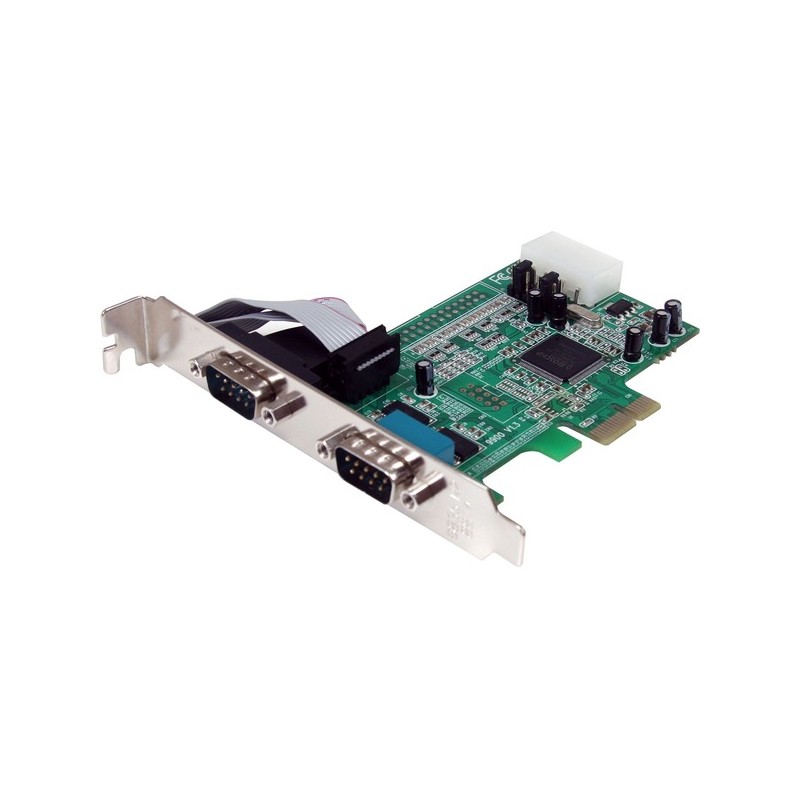

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Type:Serial Adapter
Host Interface:PCI Express x1
Data Transfer Rate:460.8kB/s
UART Type:16550
Platform Supported:
- PC
- Mac
- Linux
Number of Serial Ports (External):2
Form Factor:Plug-in Card
Card Height:Half-height/Low-profile
Height:0.8"
Width:4.7"
Length:4.1"
Weight (Approximate):2.20 oz
Package Contents:
- 2 Port PCIe Serial Adapter Card with 16550
- Low Profile Brackets
- Driver CD
- Instruction Manual
Additional Information:
- Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
- Standard and low profile/half-height bracket included to ensure fitment in any system.
- Easy to install and use with full step-by-step instructions saving time and hassle.
OS Compatibility:
- Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
- Mac OS X® 10.4 to 10.10
- Linux kernel 2.6.x to 4.11.x LTS Versions only
Environmentally Friendly:Yes
Country of Origin:Taiwan
Limited Warranty:2 Year
