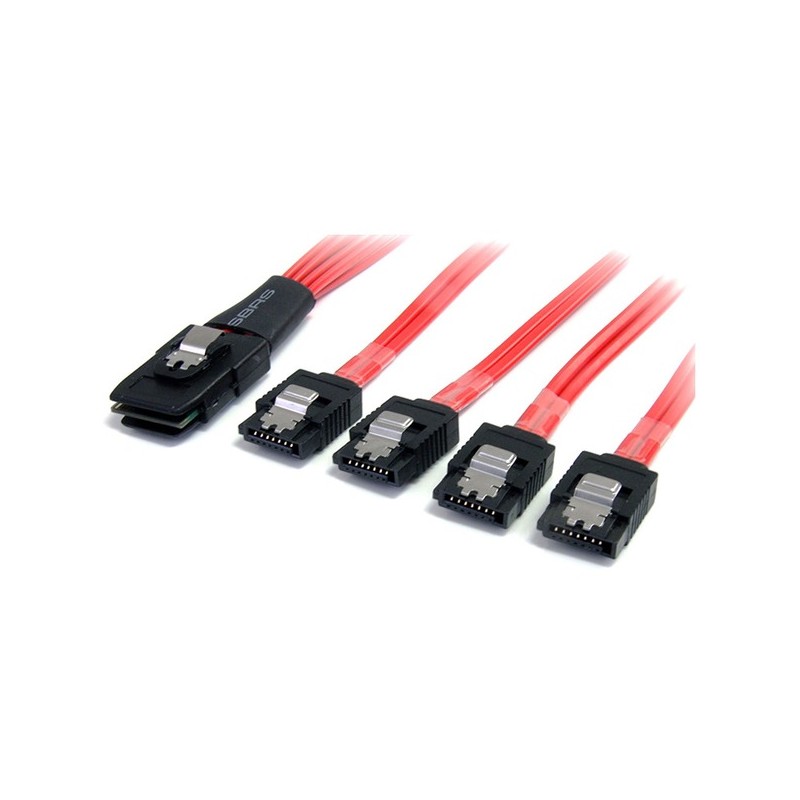

StarTech.com 1m Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA - Connect a SATA/SAS Controller to 4 SATA drives -
Reference: STCSAS8087S4100
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
The SAS8087S4100 SFF-8087 to 4x SATA SAS cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a SATA HDD to a SAS controller or backplane. Designed and constructed for long-lasting dependability and reliability, the 1m (39.37in) SFF-8087 to 4x SATA SAS cable is backed by lifetime warranty.
General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SAS8087S4100
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1m Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA
Marketing Information:The SAS8087S4100 SFF-8087 to 4x SATA SAS cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a SATA HDD to a SAS controller or backplane. Designed and constructed for long-lasting dependability and reliability, the 1m (39.37in) SFF-8087 to 4x SATA SAS cable is backed by lifetime warranty.
Manufacturer:StarTech.com
Manufacturer Part Number:SAS8087S4100
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1m Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA
Marketing Information:The SAS8087S4100 SFF-8087 to 4x SATA SAS cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a SATA HDD to a SAS controller or backplane. Designed and constructed for long-lasting dependability and reliability, the 1m (39.37in) SFF-8087 to 4x SATA SAS cable is backed by lifetime warranty.
Packaged Quantity:1
Product Type:Data Transfer Cable
Technical Information
Cable Type:SAS/SATA
Cable Characteristic:Fan-out Cable
Cable Length:3.28 ft
Connector Type on First End:SFF-8087 Mini-SAS - Male
Connector Gender on First End:Male
Connector on First End Details:1 x 36-pin SFF-8087 Mini-SAS - Male
Connector Type on Second End:SATA 3.0 - Male
Connector Gender on Second End:Male
Connector on Second End Details:4 x 7-pin SATA 3.0 - Male
Conductor:Copper
Device Supported:
American Wire Gauge:30 AWG
Data Transfer Rate:6 Gbit/s
Features:Latching Connector
Cable Type:SAS/SATA
Cable Characteristic:Fan-out Cable
Cable Length:3.28 ft
Connector Type on First End:SFF-8087 Mini-SAS - Male
Connector Gender on First End:Male
Connector on First End Details:1 x 36-pin SFF-8087 Mini-SAS - Male
Connector Type on Second End:SATA 3.0 - Male
Connector Gender on Second End:Male
Connector on Second End Details:4 x 7-pin SATA 3.0 - Male
Conductor:Copper
Device Supported:
- Hard Drive
- SAS Controller
- Backplane
American Wire Gauge:30 AWG
Data Transfer Rate:6 Gbit/s
Features:Latching Connector
Physical Characteristics
Product Color:Red
Weight (Approximate):0.17 lb
Product Color:Red
Weight (Approximate):0.17 lb
Miscellaneous
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:China
Environmentally Friendly:Yes
Environmental Certification:
- RoHS
- REACH
- WEEE
Country of Origin:China
Warranty
Limited Warranty:Lifetime
Limited Warranty:Lifetime
