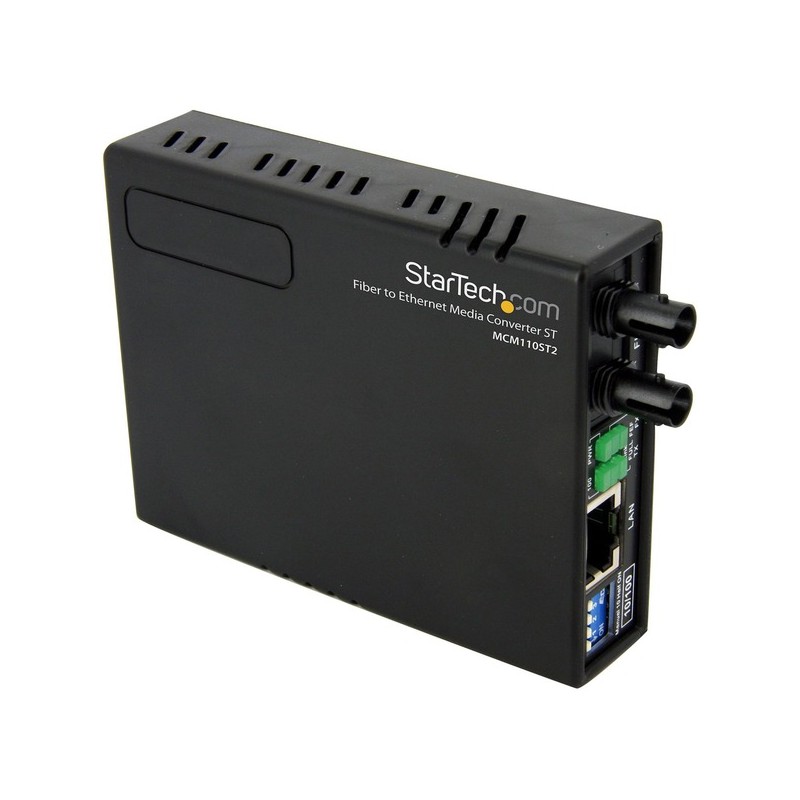

StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - Convert and extend a 10/100 Mbps Ethernet co

Reference: STCMCM110ST2

Condition: New product

Manufacturer:

99999 Items

$99.99

More info

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability. Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:MCM110ST2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
Marketing Information:The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Type:Transceiver/Media Converter

Interfaces/Ports
Total Number of Ports:2
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Number of ST Ports:1
ST Port Type:Duplex
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair

Fiber Mode Supported:Multi-mode
Fiber Optic Wavelength:1310 nm
Maximum Distance Supported:1.24 Mile
Network & Communication
Ethernet Technology:Fast Ethernet
Network Technology:
  • 10Base-T
  • 100Base-FX

Power Description
Power Source:AC Adapter
Power Consumption:2.40 W
Plug/Connector Type:Type M
Physical Characteristics
Form Factor:External
Height:0.8"
Width:3"
Depth:3.7"
Weight (Approximate):2.90 oz
Miscellaneous
Package Contents:
  • 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
  • 1 x Power Adapter
  • 1 x Instruction Manual

Additional Information:
  • Plug Type: M
  • Fiber Operating Mode: Half/Full-Duplex

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
