StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km - Convert and extend a 10/100 Mbps Ethernet

Reference: STCET90110WDM2

Condition: New product

Manufacturer:

99999 Items

$519.99

More info

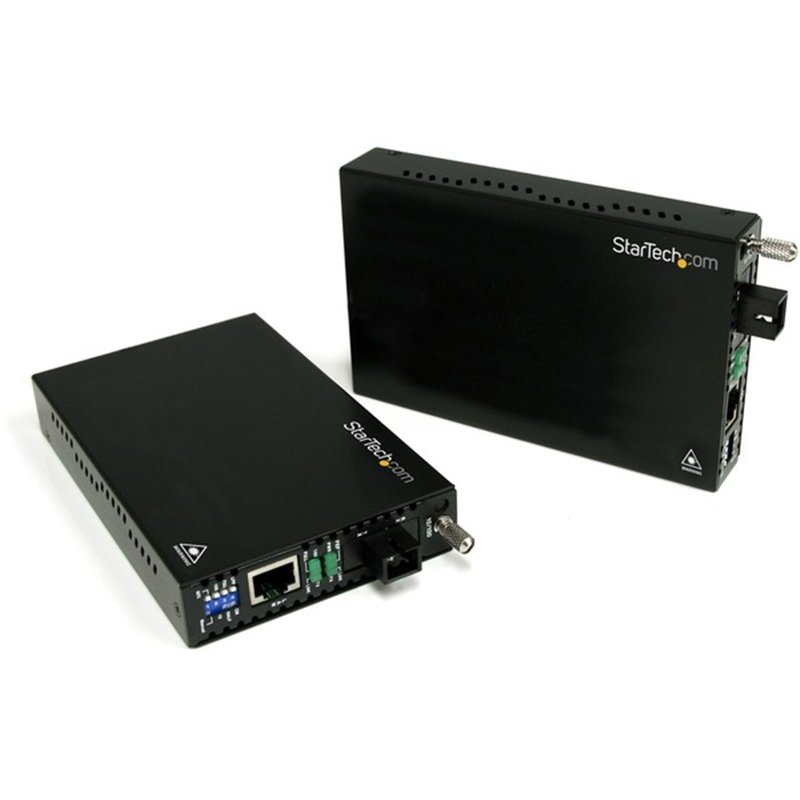

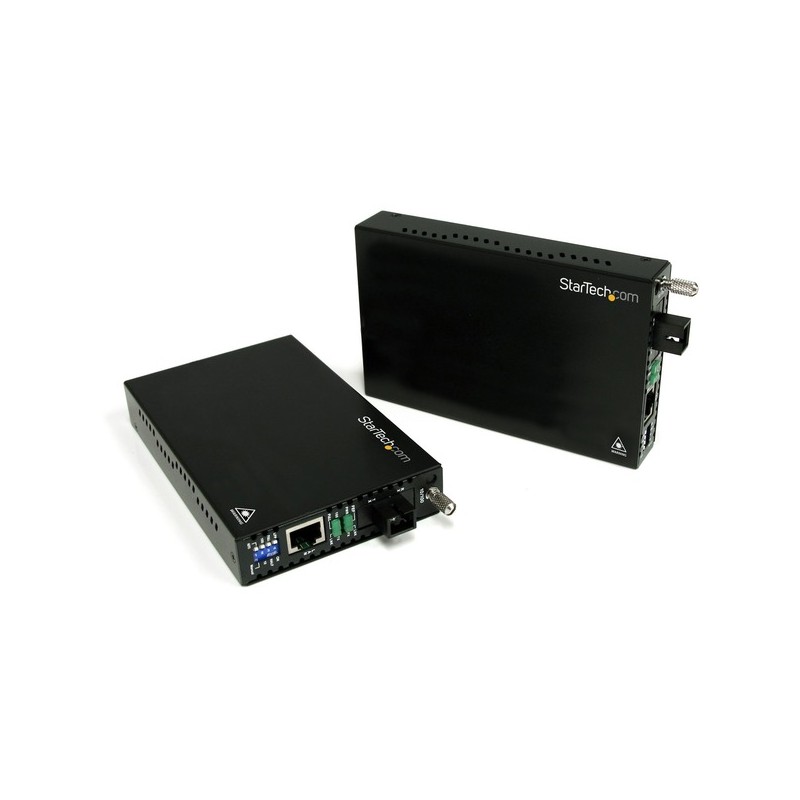

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi). The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling. The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ET90110WDM2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Marketing Information:

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).

The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Type:Transceiver/Media Converter

Interfaces/Ports
Total Number of Ports:2
Network (RJ-45):Yes
DVI:No
USB:No
Parallel Port:No
Digital Audio:No
Digital Audio/Video:No
Management Port:No
Number of Network (RJ-45) Ports:1
Number of SC Ports:1
SC Port Type:Duplex
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber

Fiber Mode Supported:Single-mode
Fiber Optic Wavelength:
  • 1310 nm
  • 1550 nm

Maximum Distance Supported:12.43 Mile
Network & Communication
Ethernet Technology:Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100Base-FX

Power Description
Power Source:AC Adapter
Input Voltage:12 V DC
Power Consumption:19.20 W
Plug/Connector Type:Type M
Physical Characteristics
Product Color:Black
Form Factor:
  • Rack-mountable
  • Desktop

Height:1"
Width:3.5"
Depth:6.3"
Weight (Approximate):2.70 lb
Miscellaneous
Package Contents:
  • 1 x Local Media Converter Unit
  • 1 x Remote Media Converter Unit
  • 2 x Universal Power Adapters (NA/EU/UK/AU)
  • 1 x Grounding Screw
  • 1 x Instruction Manual

Compatibility:

ETCHS2U Rackmount Chassis


Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • FC
  • FCC

Environmentally Friendly:Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE

Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
