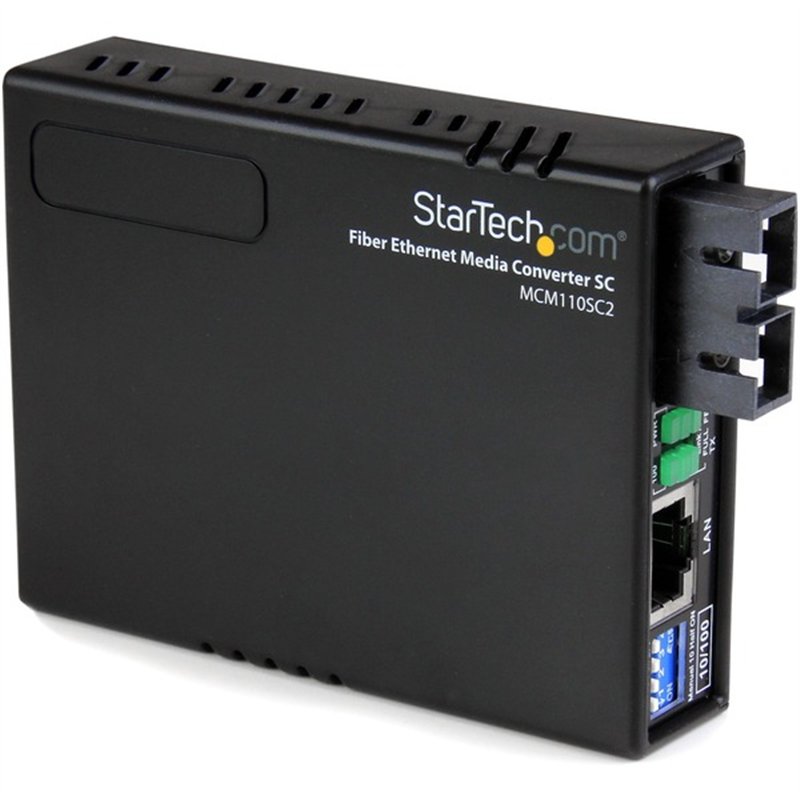

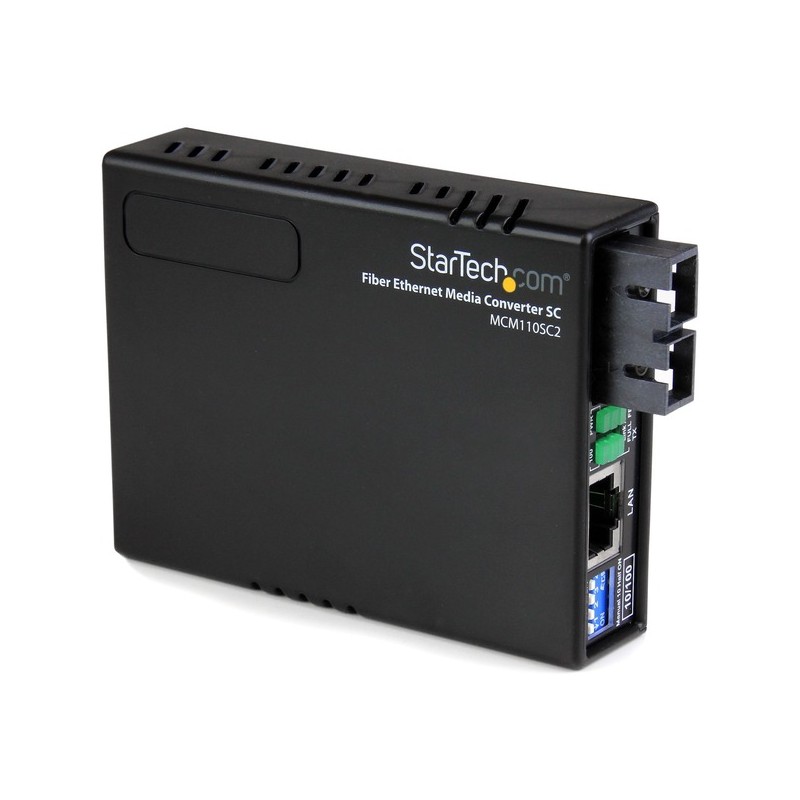

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km - Convert and extend a 10/100 Mbps Ethernet connection

Reference: STCMCM110SC2

Condition: New product

Manufacturer:

99999 Items

$99.99

More info

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone. The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability. This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:MCM110SC2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
Marketing Information:The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Type:Transceiver/Media Converter

Interfaces/Ports
Total Number of Ports:2
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Number of SC Ports:1
SC Port Type:Duplex
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair

Fiber Mode Supported:Multi-mode
Fiber Optic Wavelength:1310 nm
Network & Communication
Ethernet Technology:Fast Ethernet
Network Technology:
  • 10Base-T
  • 100Base-FX
  • 100Base-TX

Power Description
Power Source:AC Adapter
Power Consumption:2.40 W
Plug/Connector Type:Type M
Physical Characteristics
Form Factor:External
Height:0.8"
Width:3"
Depth:3.7"
Weight (Approximate):3 oz
Miscellaneous
Additional Information:
  • Plug Type: M
  • Fiber Operating Mode: Half/Full-Duplex

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
