  5. StarTech.com 1 Port PCIe Ethernet Network Card - Add a 10/100Mbps Ethernet port to a desktop computer through a PCI Express slot

StarTech.com 1 Port PCIe Ethernet Network Card - Add a 10/100Mbps Ethernet port to a desktop computer through a PCI Express slot

Reference: STCPEX100S

Condition: New product

Manufacturer:

99999 Items

$37.99

More info

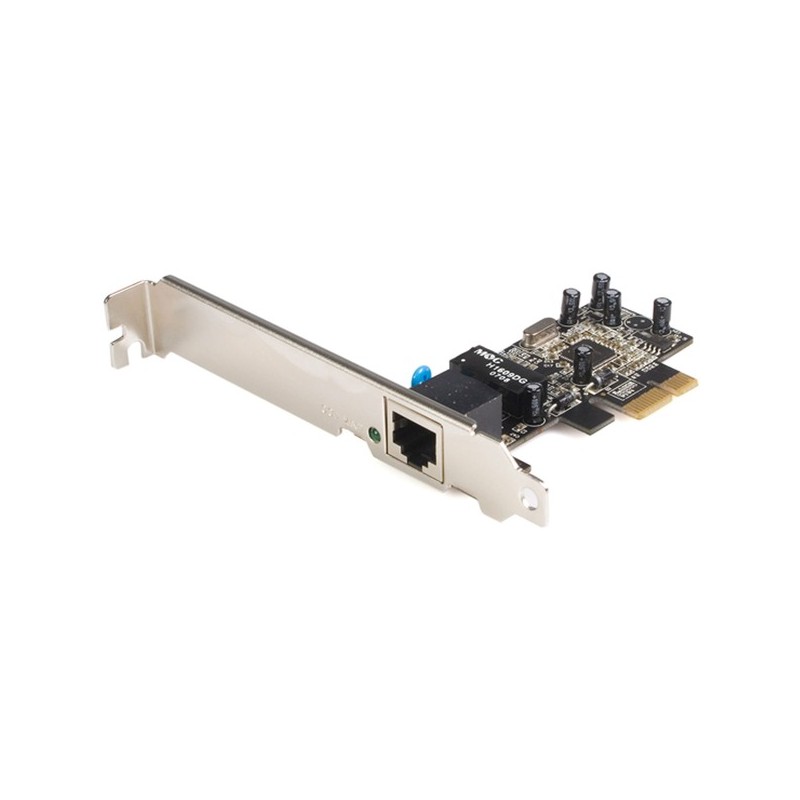

This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management. The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PEX100S
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card
Marketing Information:

This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.

The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.


Packaged Quantity:1
Product Type:Fast Ethernet Card

Technical Information
Chipset Manufacturer:Realtek
Chipset Model:RTL8101E
Interfaces/Ports
Host Interface:PCI Express
Total Number of Ports:1
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 5
Data Transfer Rate:12.50 MB/s
Network & Communication
Network Technology:10/100Base-TX
Physical Characteristics
Form Factor:Plug-in Card
Height:0.8"
Width:4.7"
Length:3.6"
Weight (Approximate):1.10 oz
Miscellaneous
Package Contents:
  • 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card
  • 1 x Low Profile Bracket
  • 1 x Instruction Manual
  • 1 x Driver CD

System Requirements:
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2016, 2019
  • Linux 2.6.x to 4.11.x LTS Versions Only

Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:2 Year
