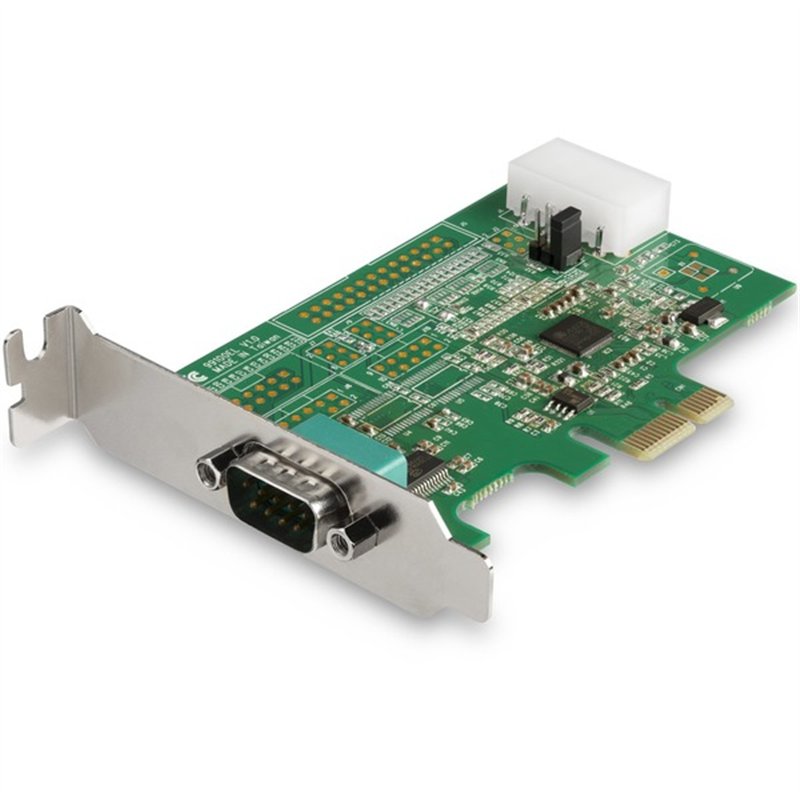

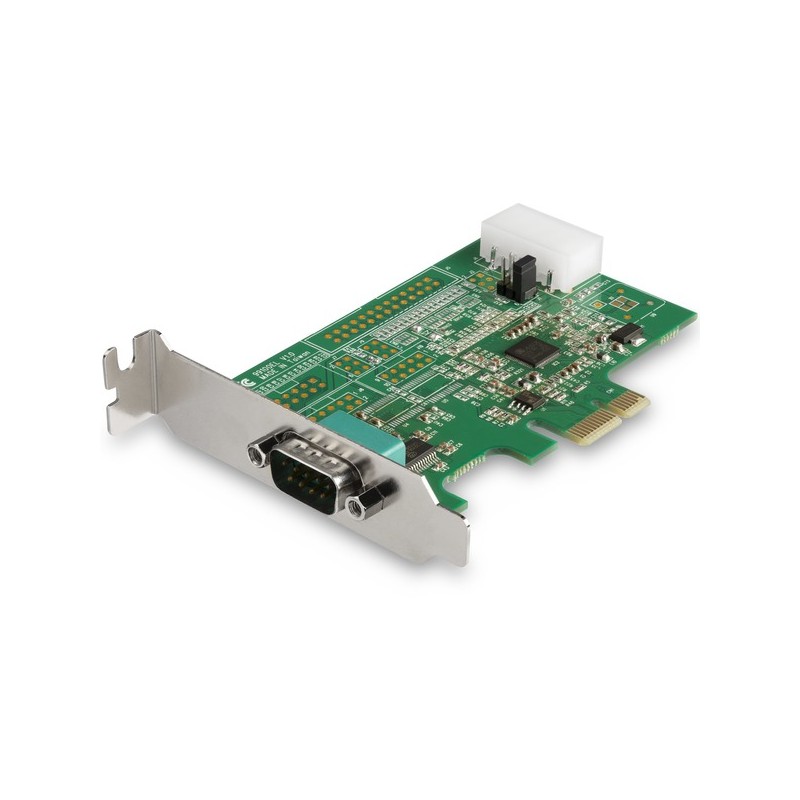

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/L
Reference: STCPEX1S953LP
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Manufacturer:StarTech.com
Manufacturer Part Number:PEX1S953LP
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1-Port PCI Express Serial Card with 16950 UART - Low-Profile
Marketing Information:
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
- Compatible with industry standard 16950 UART
- Supports max baud rate of up-to 921.4Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 128-byte depth FIFO per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits
- Asix AX99100 chipset
- PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Packaged Quantity:1
Product Type:Serial Adapter
Host Interface:PCI Express x1
UART Type:16950
Platform Supported:
- PC
- Linux
Number of Serial Ports (External):1
Form Factor:Plug-in Card
Card Height:Low-profile
Height:5.9"
Width:2.6"
Length:3.9"
Weight (Approximate):1.60 oz
Package Contents:
- 1-Port PCI Express Serial Card with 16950 UART - Low-Profile
- 1 x Full-Profile Bracket
- 1 x User Manual
Environmentally Friendly:Yes
Country of Origin:Taiwan
Limited Warranty:Lifetime
