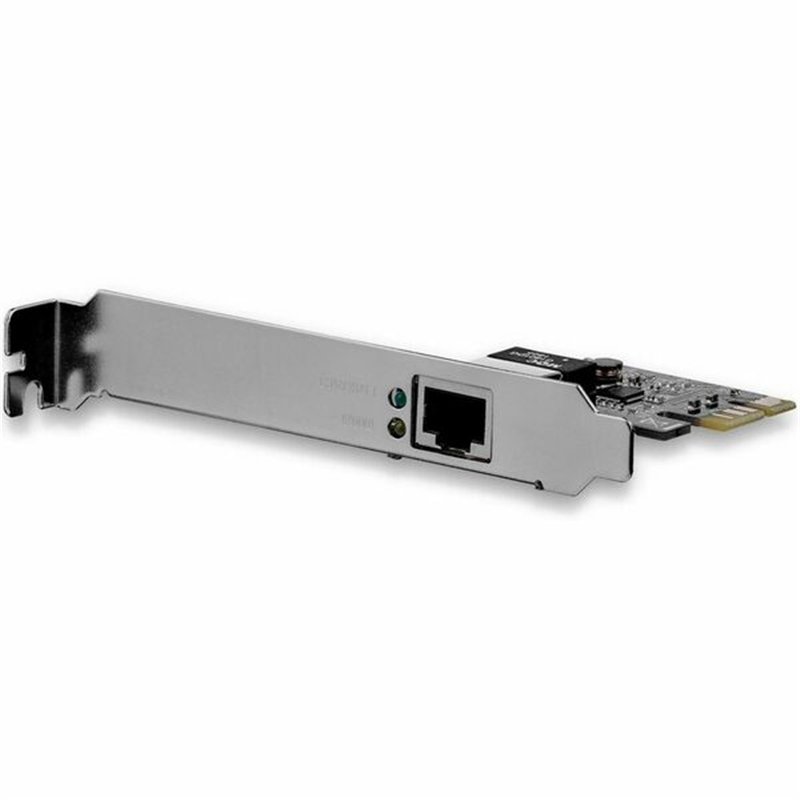

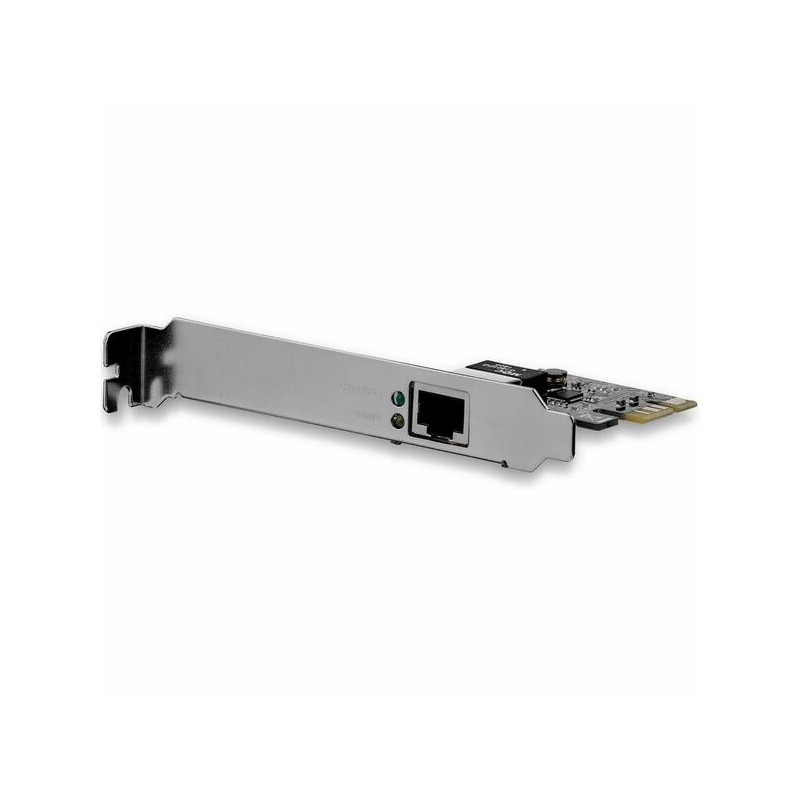

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile - Add a 10/100/1000Mbps Ethernet por

Reference: STCST1000SPEX2

Condition: New product

Manufacturer:

99999 Items

$46.99

More info

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface. Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance. Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor. The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST1000SPEX2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
Marketing Information:

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Gigabit Ethernet Card

Technical Information
Chipset Manufacturer:Realtek
Chipset Model:RTL8111
Interfaces/Ports
Host Interface:PCI Express x1
Total Number of Ports:1
Network (RJ-45):Yes
USB:No
Serial Port:No
Ethernet AUI:No
XJACK:No
PoE (RJ-45) Port:No
Number of Network (RJ-45) Ports:1
Media & Performance
Media Type Supported:Twisted Pair
Data Transfer Rate:125 MB/s
Network & Communication
Network Technology:10/100/1000Base-T
InfiniBand:No
Physical Characteristics
Card Height:
  • Full-height
  • Low-profile

Form Factor:Plug-in Card
Height:0.7"
Width:4.7"
Length:2.7"
Weight (Approximate):1.30 oz
Miscellaneous
Package Contents:
  • 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
  • 1 x Low Profile Bracket
  • 1 x Instruction Manual

Device Supported:PC
System Requirements:
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS X® 10.6 to 10.9
  • Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:2 Year
