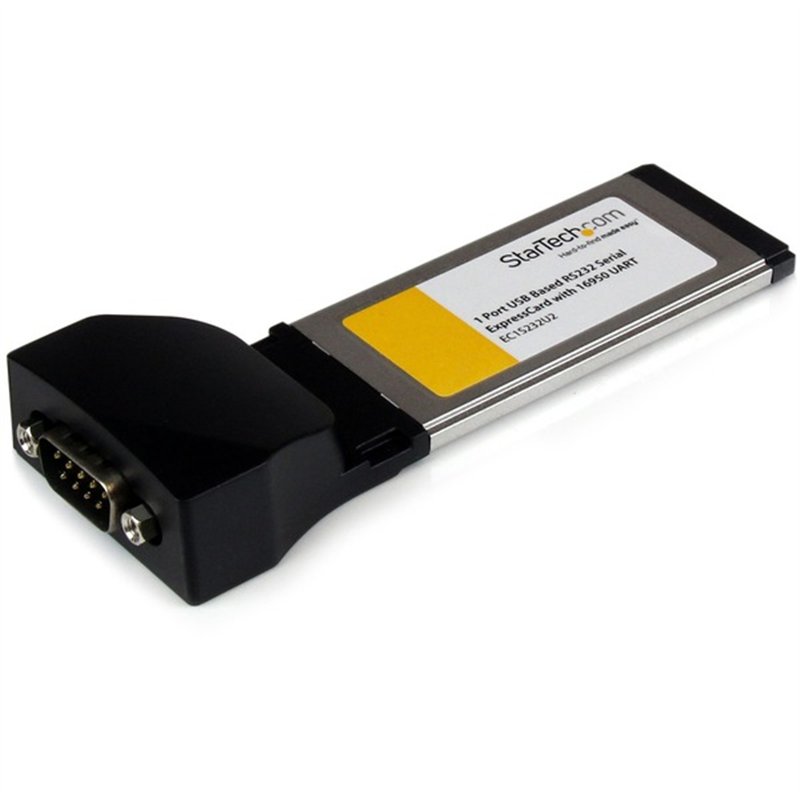

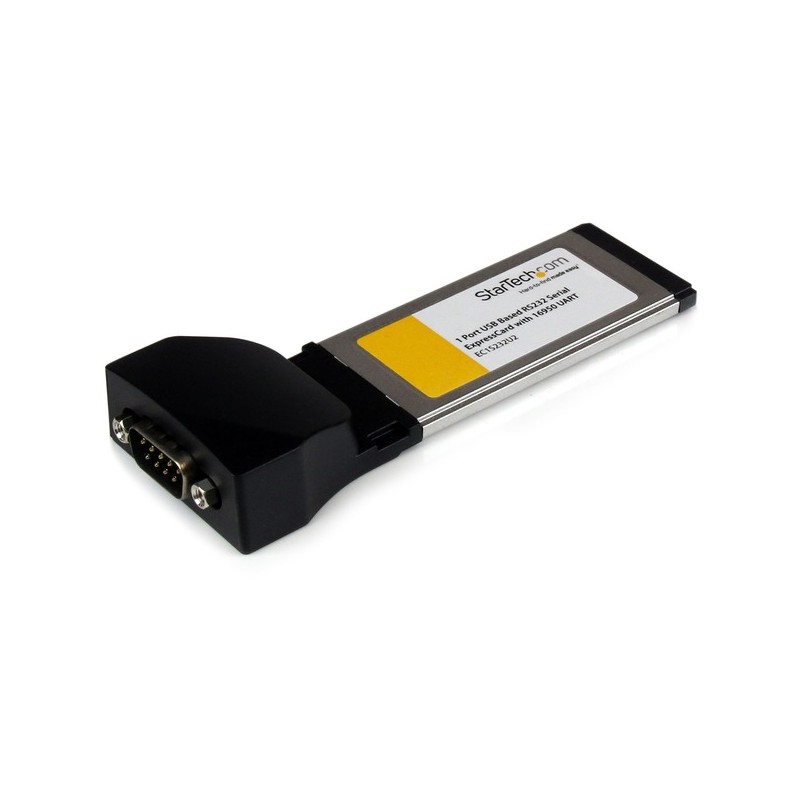

StarTech.com 1 Port ExpressCard to RS232 DB9 Serial Adapter Card w/ 16950 - USB Based - Add a USB-based RS232 Serial port to you

Reference: STCEC1S232U2

Condition: New product

Manufacturer:

99999 Items

$55.99

More info

The EC1S232U2 ExpressCard RS232 Serial Adapter Card (USB-based) (16950 UART) adds an RS232 (DB9) serial port to your ExpressCard-equipped laptop, enabling you to connect an RS232 serial peripheral device such as a plotter, digital signage device, receipt printer or bar code scanner through an available ExpressCard slot. This USB-based ExpressCard supports RS232 serial data transfer rates up to 460 Kbps and eliminates the need to upgrade serial peripherals to more modern interfaces (e.g. USB, etc.) for the sake of host compatibility, saving both expense and hassle. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:EC1S232U2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1 Port ExpressCard to RS232 DB9 Serial Adapter Card w/ 16950 - USB Based
Marketing Information:

The EC1S232U2 ExpressCard RS232 Serial Adapter Card (USB-based) (16950 UART) adds an RS232 (DB9) serial port to your ExpressCard-equipped laptop, enabling you to connect an RS232 serial peripheral device such as a plotter, digital signage device, receipt printer or bar code scanner through an available ExpressCard slot.

This USB-based ExpressCard supports RS232 serial data transfer rates up to 460 Kbps and eliminates the need to upgrade serial peripherals to more modern interfaces (e.g. USB, etc.) for the sake of host compatibility, saving both expense and hassle.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


Product Type:Serial Adapter

Technical Information
Host Interface:ExpressCard/34
Data Transfer Rate:Up to 460.8kB/s
UART Type:
  • 16950
  • 16C950

Platform Supported:
  • PC
  • Mac

Interfaces/Ports
Number of Serial Ports (External):1
Physical Characteristics
Form Factor:Plug-in Module
Height:0.7"
Width:1.4"
Length:4.5"
Weight (Approximate):1.20 oz
Miscellaneous
Package Contents:
  • 1 Port ExpressCard to RS232 DB9 Serial Adapter Card w/ 16950 - USB Based
  • 1 x Driver CD
  • 1 x Instruction Manual

Additional Information:

OS Compatibility:

  • Windows® PocketPC 2003, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, POS Ready 2009, 98SE, Vista, 7, 8, 8.1, 10, 11
  • Windows Server® 2003, 2008 R2, 2012, 2016, 2019
  • macOS 10.6 to 10.15, 11.0, 12.0, 13.0
  • Linux 2.4.x to 4.11.x LTS Versions only

Environmentally Friendly:Yes
Environmental Certification:
  • RoHS
  • WEEE

Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:Lifetime
