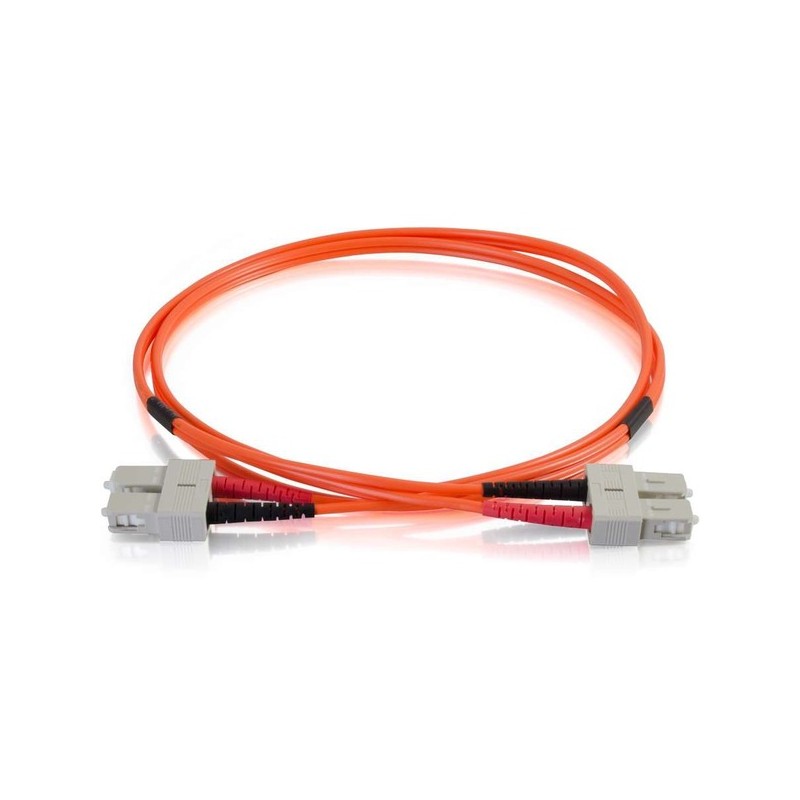

C2G-2m SC-SC 50/125 OM2 Duplex Multimode PVC Fiber Optic Cable - Orange - Fiber Optic for Network Device - SC Male - SC Male - 5
Reference: CGO33002
Condition: New product
Manufacturer: Legrand Group
99999 Items
More info
Manufacturer:Legrand Group
Manufacturer Part Number:33002
Manufacturer Website Address:http://www.legrand.us
Brand Name:C2G
Product Name:Duplex Fiber Patch Cable
Marketing Information:
Cost-effective solution that provides higher bandwidth and transmission rates and supports longer distances with lower loss than 62.5/125 fiber. Specifically designed for use with today's narrower aperture components, this cable is fully compatible with multimode applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multimode fiber, immune to electrical interference.
Product Type:Network Cable
Cable Type:Fiber Optic
Cable Characteristic:Patch Cable
Cable Length:6.56 ft
Connector Type on First End:SC Network - Male
Connector on First End Details:2 x SC Network - Male
Connector Type on Second End:SC Network - Male
Connector on Second End Details:2 x SC Network - Male
Jacket Type:Plenum
Product Color:Orange
Weight (Approximate):0.25 lb
Additional Information:
- Buffer material: PVC
- Buffer OD: 900 µm
- Jacket OD: 3.0 mm
- Jacket color: Orange
- Min. bandwidth @850 nm: 160 kHz/km
- Min. bandwidth @1310 nm: 500 kHz/km
- Attenuation @850 nm: 3.75 dB/km
- Attenuation @1310 nm: 1.5 dB/km
- Maximum tensile load: 100 N/cm
- Loaded min. bend radius: 5 cm
- Unloaded min. bend radius: 3 cm
- Crush resistance: 750 N/cm
- Impact resistance: 1000 cycles
- Flex resistance: 5000 cycles
Country of Origin:China
Limited Warranty:Lifetime
