StarTech.com StarTech.com1 Port eSATA + 1 Port SATA PCI SATA Controller Card - Add an internal SATA port and an external SATA (e

Reference: STCPCIESATA2I

Condition: New product

Manufacturer:

99999 Items

$31.99

More info

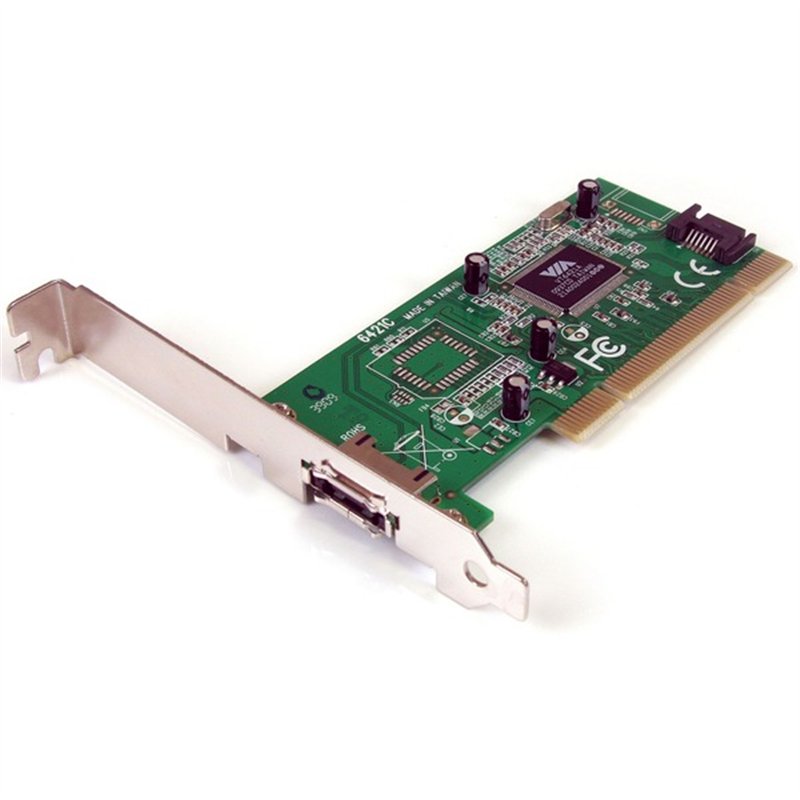

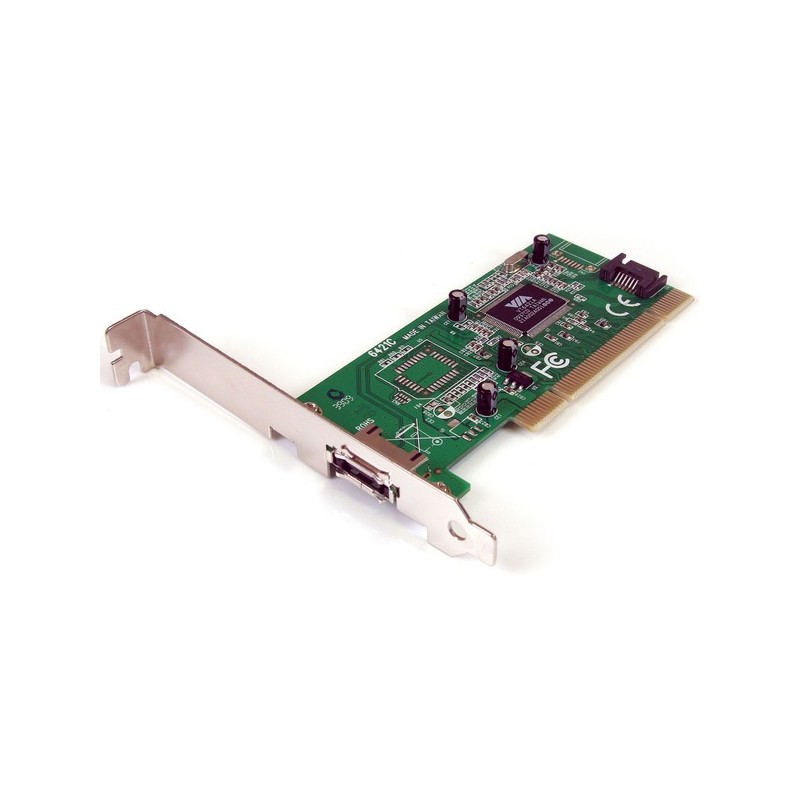

This PCI based SATA Controller Card allows you to turn a PCI slot into one internal SATA and one external SATA (eSATA) connection. Supporting SATA 150 hard drives, and data transfer rates of up to 1.5Gbps, this controller card is the perfect solution if you need an extra SATA port or want to externalize your storage.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PCIESATA2I
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1 Port eSATA + 1 Port SATA PCI SATA Controller Card w/ LP Bracket
Marketing Information:

This PCI based SATA Controller Card allows you to turn a PCI slot into one internal SATA and one external SATA (eSATA) connection. Supporting SATA 150 hard drives, and data transfer rates of up to 1.5Gbps, this controller card is the perfect solution if you need an extra SATA port or want to externalize your storage.


Product Type:SATA Controller

Technical Information
Host Interface:PCI
Controller Type:Serial ATA/150
Number of Physical Drive Supported:2
Interfaces/Ports
Total Number of SATA Ports:2
Number of SATA Ports (Internal):1
Number of SATA Ports (External):1
Physical Characteristics
Height:0.8"
Width:2.1"
Length:4.8"
Form Factor:Plug-in Card
Card Height:Dual-profile
Weight (Approximate):1.60 oz
Miscellaneous
Package Contents:
  • 1 Port eSATA + 1 Port SATA PCI SATA Controller Card w/ LP Bracket
  • 1 x SATA Data Cable
  • 1 x Low Profile Bracket
  • 1 x Software CD
  • 1 x Instruction Manual

Platform Supported:PC
Additional Information:
  • Supports hard drives larger than 136GB with 48-bit LBA and SATA transfer rates up to 1.5Gbps
  • Both internal and external SATA ports and full and low profile/half-height installation options for a flexible SATA expansion
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:2 Year
