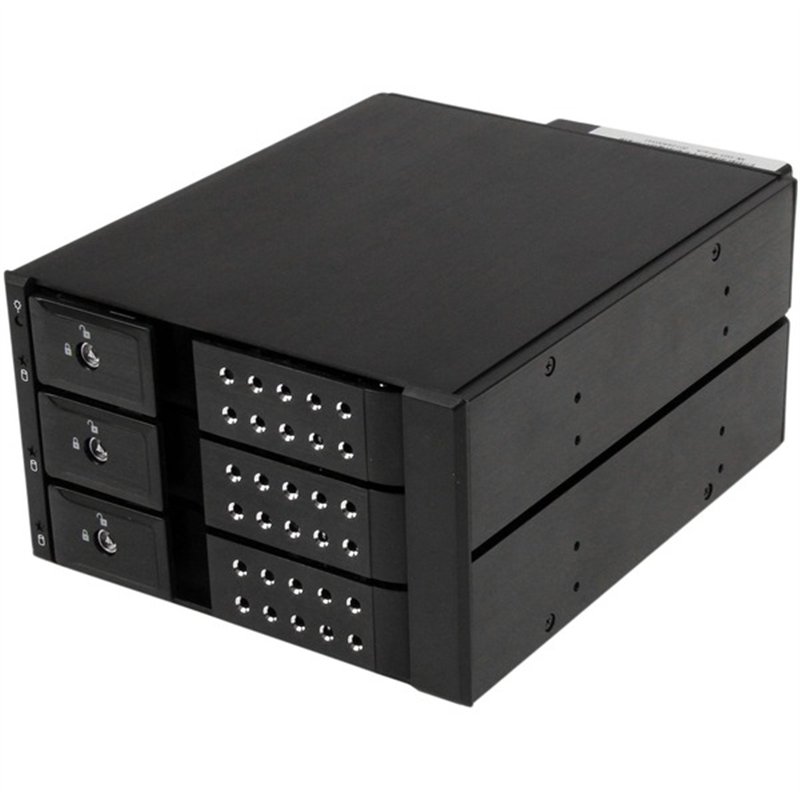

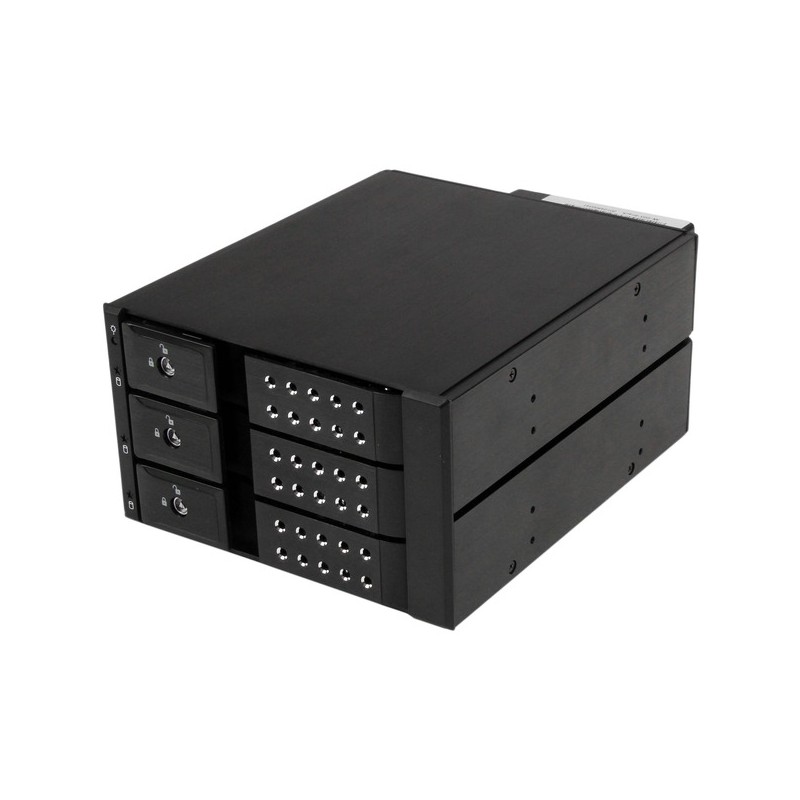

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Easily connect and

Reference: STCHSB3SATSASBA

Condition: New product

Manufacturer:

99999 Items

$149.99

More info

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:HSB3SATSASBA
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:3 SATA HDD Backplane
Marketing Information:

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Drive Enclosure

Technical Information
Number of Hard Drives Supported:3
Number of Hard Drives Installed:No
I/O Expansions
Number of Total Expansion Bays:3
Number of 3.5" Bays:3
Network & Communication
Wireless LAN:No
Interfaces/Ports
Drive Interface:
  • Serial Attached SCSI (SAS)
  • SATA/600

Network (RJ-45):No
Host Interface:Serial ATA/600
Physical Characteristics
Product Color:Black
Product Material:Aluminum
Cooling Fan:Yes
Form Factor:Internal
Compatible Drive Bay Width:5.25"
Height:4.3"
Width:5.7"
Depth:7.6"
Weight (Approximate):2.70 lb
Miscellaneous
Package Contents:
  • 3 SATA HDD Backplane
  • 1 x Installation Screw Kit
  • 1 x Instruction Manual
  • 2 x Bay Key s
  • 3 x 18" SATA Cables

Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:2 Year
