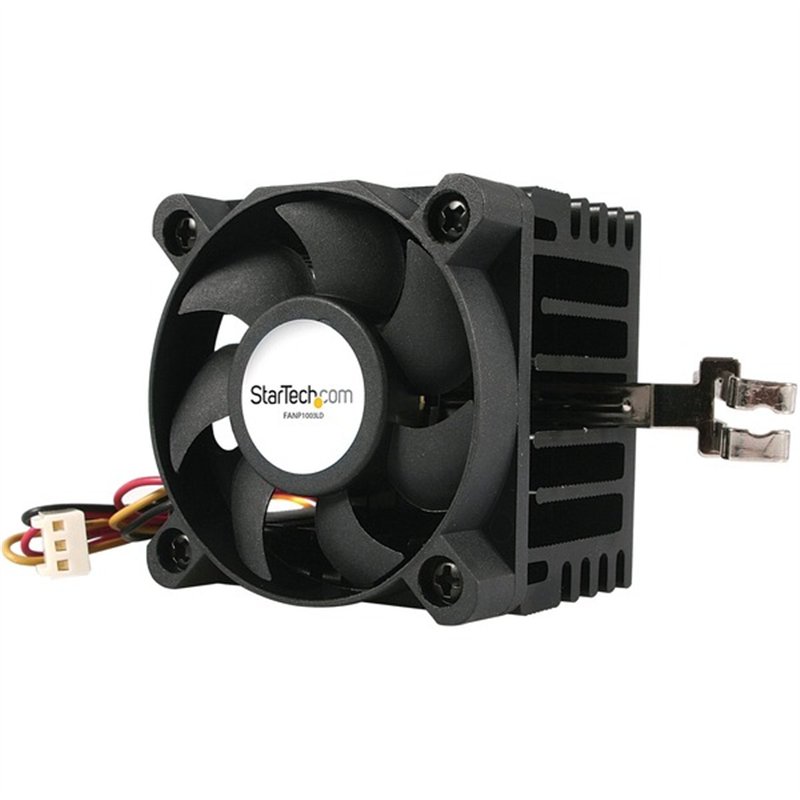

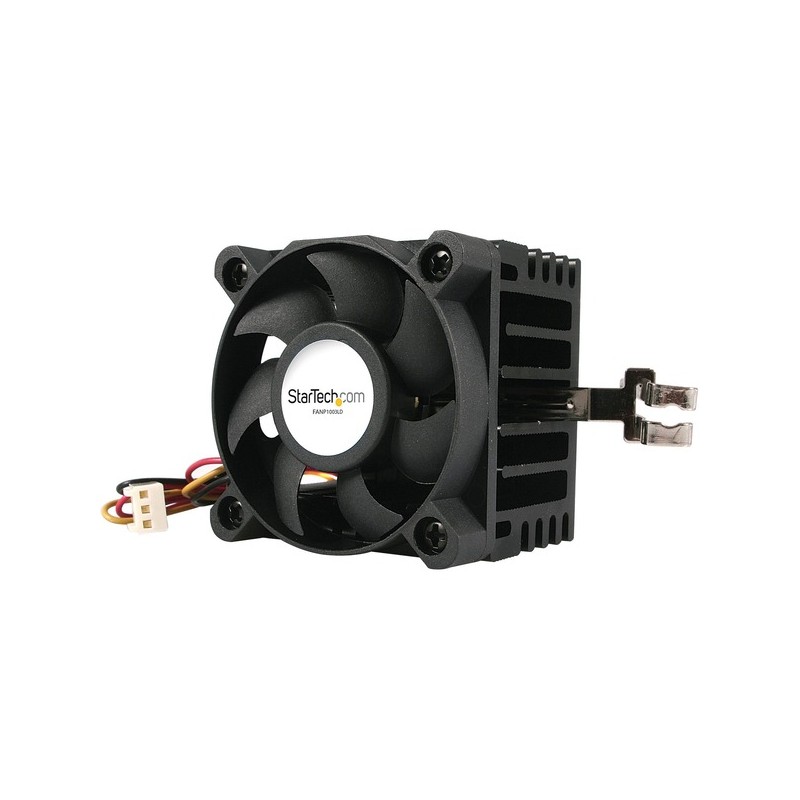

StarTech.com 50x50x41mm Socket 7/370 CPU Cooler Fan w/ Heatsink and TX3 and LP4 - Replace or upgrade a Socket 7 or 370 CPU heats
Reference: STCFANP1003LD
Condition: New product
Manufacturer: StarTech.com
99999 Items
More info
Replace or upgrade a Socket 7 or 370 CPU heatsink fan assembly. StarTech.com's Socket 7/Socket 730 CPU cooler fan optimizes heat dissipation and removal by combining a large aluminum heatsink and 5cm brushless ball-bearing fan, helping to ensure ideal operating conditions for your hard working CPU. A broadly compatible CPU cooling solution, the Socket 7/Socket 730 CPU cooler fan provides quiet cooling for Socket 370(PPGA) Celerons, Socket 7 Pentiums, AMD K6, K6-2 and Cyrix chips and is powered using a TX3 (3-lead) connection to either the computer power supply or the motherboard (direct). When powered directly from the motherboard, the fan speed and operating status can be monitored for ideal performance. Capable of moving up to 8.84 CFM of air away from the CPU, the Socket 7/Socket 730 CPU cooler fan features a high-efficiency fan blade design and is backed by StarTech.com's 2-year warranty and free lifetime technical support.
General Information
Manufacturer:StarTech.com
Manufacturer Part Number:FANP1003LD
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:50x41mm Socket 7/370 CPU Cooler Fan
Marketing Information:Replace or upgrade a Socket 7 or 370 CPU heatsink fan assembly. StarTech.com's Socket 7/Socket 730 CPU cooler fan optimizes heat dissipation and removal by combining a large aluminum heatsink and 5cm brushless ball-bearing fan, helping to ensure ideal operating conditions for your hard working CPU. A broadly compatible CPU cooling solution, the Socket 7/Socket 730 CPU cooler fan provides quiet cooling for Socket 370(PPGA) Celerons, Socket 7 Pentiums, AMD K6, K6-2 and Cyrix chips and is powered using a TX3 (3-lead) connection to either the computer power supply or the motherboard (direct). When powered directly from the motherboard, the fan speed and operating status can be monitored for ideal performance. Capable of moving up to 8.84 CFM of air away from the CPU, the Socket 7/Socket 730 CPU cooler fan features a high-efficiency fan blade design and is backed by StarTech.com's 2-year warranty and free lifetime technical support.
Manufacturer:StarTech.com
Manufacturer Part Number:FANP1003LD
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:50x41mm Socket 7/370 CPU Cooler Fan
Marketing Information:Replace or upgrade a Socket 7 or 370 CPU heatsink fan assembly. StarTech.com's Socket 7/Socket 730 CPU cooler fan optimizes heat dissipation and removal by combining a large aluminum heatsink and 5cm brushless ball-bearing fan, helping to ensure ideal operating conditions for your hard working CPU. A broadly compatible CPU cooling solution, the Socket 7/Socket 730 CPU cooler fan provides quiet cooling for Socket 370(PPGA) Celerons, Socket 7 Pentiums, AMD K6, K6-2 and Cyrix chips and is powered using a TX3 (3-lead) connection to either the computer power supply or the motherboard (direct). When powered directly from the motherboard, the fan speed and operating status can be monitored for ideal performance. Capable of moving up to 8.84 CFM of air away from the CPU, the Socket 7/Socket 730 CPU cooler fan features a high-efficiency fan blade design and is backed by StarTech.com's 2-year warranty and free lifetime technical support.
Product Type:Cooling Fan/Heatsink
Fan Information
Number of Fans:1
Fan Bearing Type:Ball Bearing
Fan Speed (Max):4500 rpm
Maximum Airflow:66.1 gal/min
Airflow Details:
Number of Fans:1
Fan Bearing Type:Ball Bearing
Fan Speed (Max):4500 rpm
Maximum Airflow:66.1 gal/min
Airflow Details:
1 x 8.84CFM
Heatsink Information
Fins/Pins Style:Round Pin
Cooler Type:Thermoelectric
Fins/Pins Style:Round Pin
Cooler Type:Thermoelectric
Interfaces/Ports
Connectors:
Connectors:
- 3-pin TX3 Female
- 4-pin LP4
Power Description
Input Voltage:12 V DC
Input Voltage:12 V DC
Physical Characteristics
Fan Location:Side
Height:1.9"
Width:1.6"
Weight (Approximate):2.86 oz
Fan Location:Side
Height:1.9"
Width:1.6"
Weight (Approximate):2.86 oz
Miscellaneous
Additional Information:
Compatibility:
Application/Usage:Processor
Country of Origin:China
Additional Information:
- Aluminum heatsink with 50mm ball bearing cooling fan provides optimal cooling for Socket 7/370 CPUs
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Compatibility:
- Intel - Celeron Socket 370(PPGA) , Pentium Socket 7
- AMD - K6, K6-2
- Cyrix Chips
Application/Usage:Processor
Country of Origin:China
Warranty
Limited Warranty:2 Year
Limited Warranty:2 Year
