StarTech.com 1 Port PCI Express IDE Controller Adapter Card - Add a 2-channel IDE port to a computer through a PCI Express slot

Reference: STCPEX2IDE

Condition: New product

Manufacturer:

99999 Items

$42.99

More info

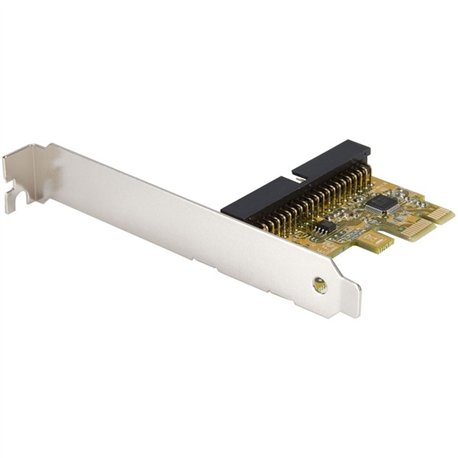

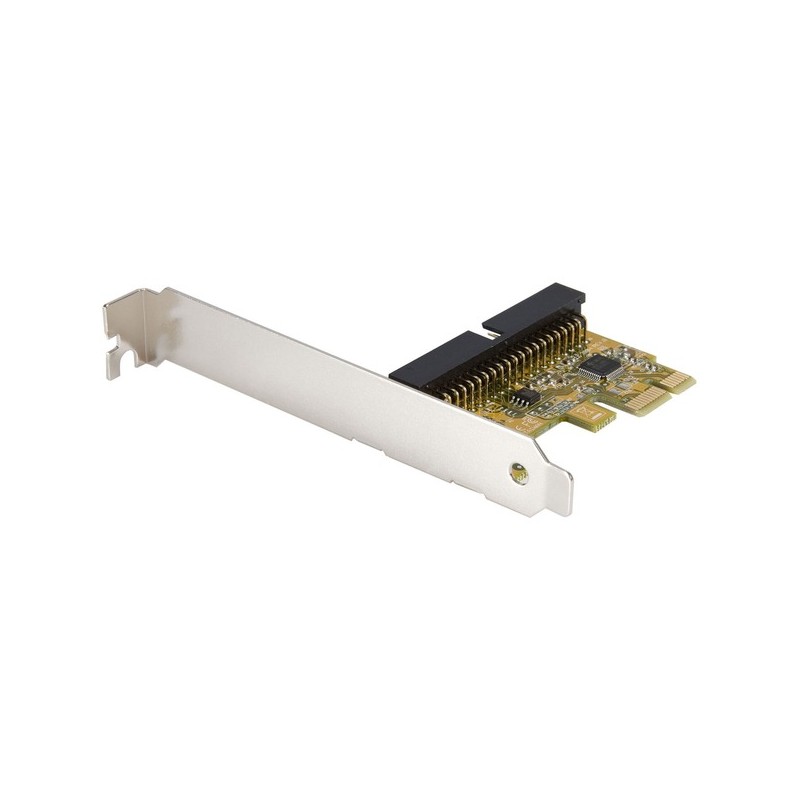

This PCI Express IDE Controller Adapter Card provides a cost-effective way to use legacy drives with modern computers, by converting a PCI Express port into an IDE port. Providing data burst transfer rates of up to 133MBps and support for PIO 0/1/2/3/4 and UDMA 33/66/100/133 operating modes, the IDE controller card offers an efficient way to add an IDE channel with support for two IDE drives on the same channel. A complete dual profile solution, the PCI Express IDE controller card provides both standard and low profile brackets for adapting to slimline or small form factor system applications.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PEX2IDE
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1-Port PCI Express IDE Controller Adapter Card
Marketing Information:

This PCI Express IDE Controller Adapter Card provides a cost-effective way to use legacy drives with modern computers, by converting a PCI Express port into an IDE port.

Providing data burst transfer rates of up to 133MBps and support for PIO 0/1/2/3/4 and UDMA 33/66/100/133 operating modes, the IDE controller card offers an efficient way to add an IDE channel with support for two IDE drives on the same channel.

A complete dual profile solution, the PCI Express IDE controller card provides both standard and low profile brackets for adapting to slimline or small form factor system applications.


Product Type:Ultra ATA Controller

Technical Information
Host Interface:PCI Express x1
Controller Type:Ultra ATA/133 (ATA-7)
Number of Physical Drive Supported:2
Interfaces/Ports
Total Number of IDE Ports:1
Physical Characteristics
Form Factor:Plug-in Card
Weight (Approximate):4.20 oz
Miscellaneous
Package Contents:
  • 1-Port PCI Express IDE Controller Adapter Card
  • IDE Cable
  • Low Profile Bracket
  • Instruction Manual

Platform Supported:PC
Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:Lifetime
